Steering Column Switch Module, Removing And Installing, VALEO: Installing

Install in the reverse order of removal. Note The Following  :

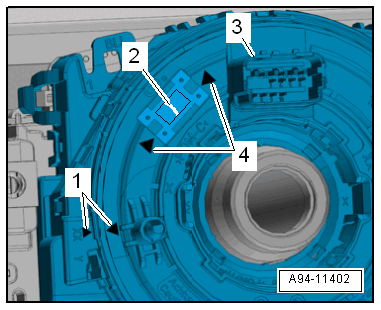

-- The following must be checked on the Steering Column Electronics Control Module -J527- -3- before sliding on the steering column switch module:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The "arrows" -1- must align.
• The spiral spring -2- must be seen in the window between the "arrows" -4-.
