Home >> Volkswagen >> 2016 >> Golf Base, Eng CD CXBA, Automatic Trans >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Diagram (Engines: CXBA, CXBB) >> Wiring Diagrams >> Fuel Tank Pressure Sensor, Steering Column Electronics Control Module, Engine Control Module, Electronic Steering Column Lock Control Module, Fuel Tank Leak Detection Control Module >> Notes

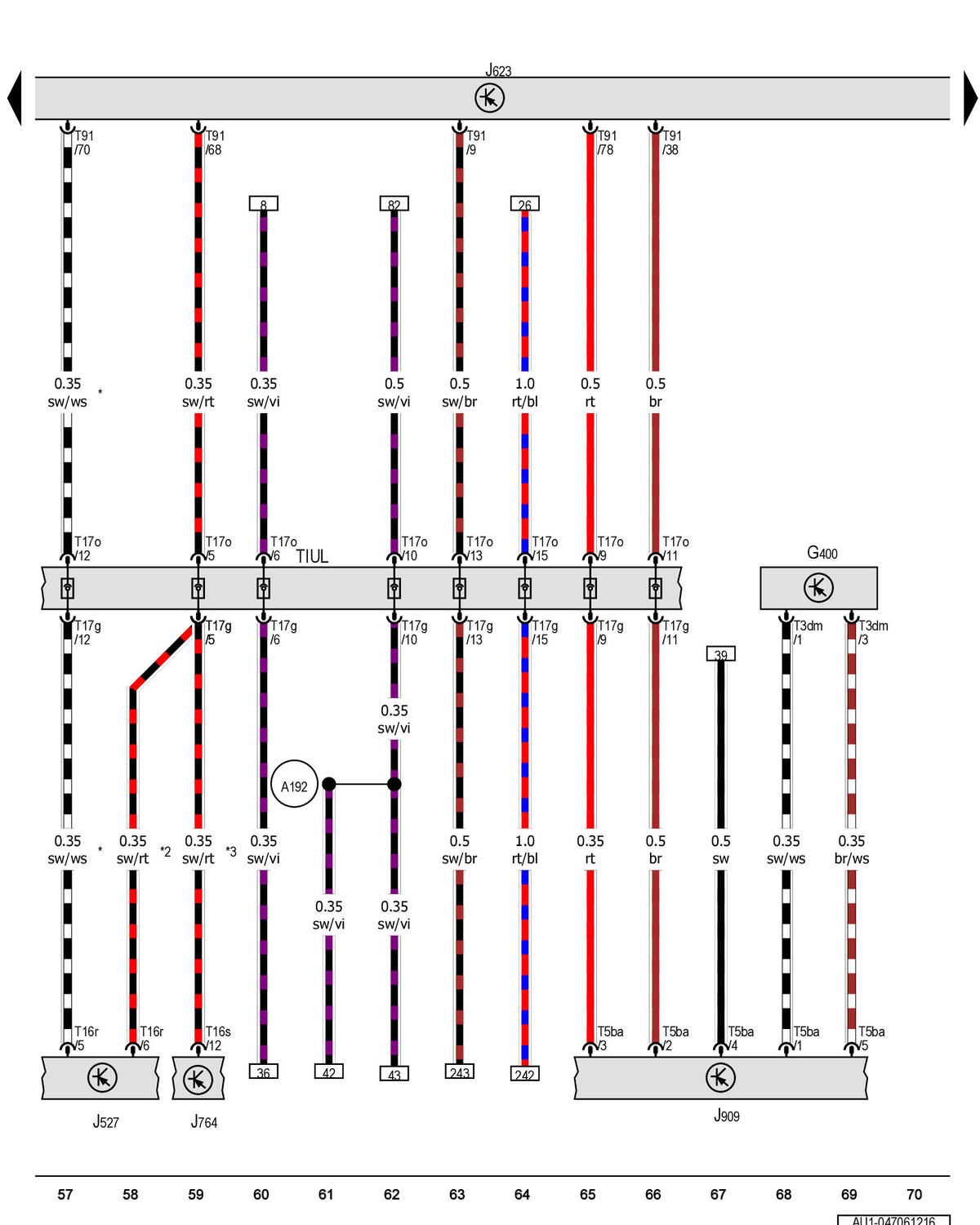

Fuel Tank Pressure Sensor, Steering Column Electronics Control Module, Engine Control Module, Electronic Steering Column Lock Control Module, Fuel Tank Leak Detection Control Module: Notes

GWWAU1-047061216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
