Underbody Protection Protected Areas
>>
Rear Underbody Protection

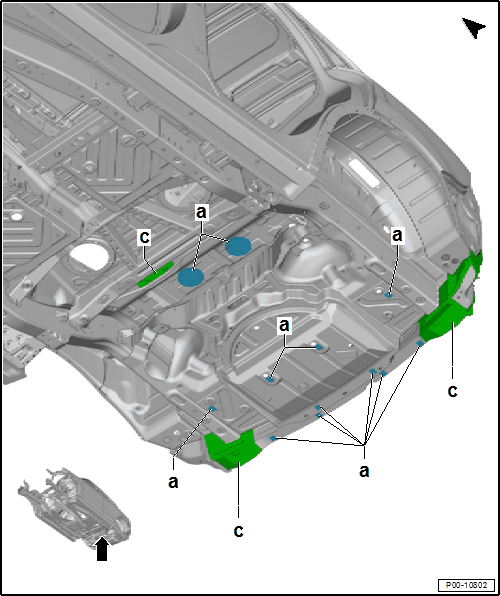

Rear Underbody Protection
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
a -Underbody Protection
Layer thickness 0.3 mm
c -Underbody Protection
Layer thickness 0.6 mm
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
