Steering Column Electronics Control Module (E = 4-Pin) Connector End View (J527)

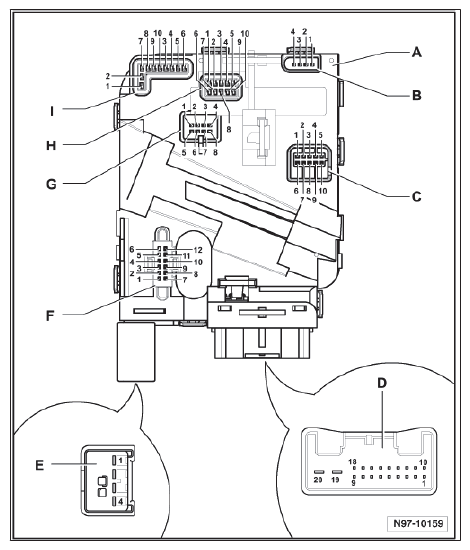

Fig 1: Steering Column Electronics Control Module (E = 4-Pin) Connector End View (J527)
G10375942
1 Airbag 1 -
2 Airbag 1 +
3 Airbag 2 +
4 Airbag 2 -
