Operating Electronics and Telephone Control Module Connector End Views (J412, T18b, T20d)

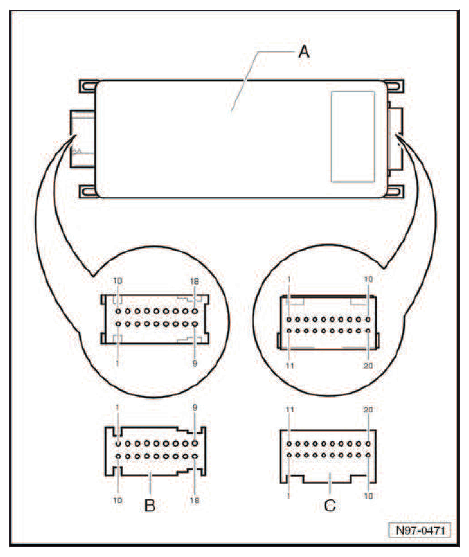

Fig 1: Operating Electronics and Telephone Control Module Connector End Views (J412, T18b, T20d)
G10375954
A Operating Electronics and Telephone Control Module -J412-
B 18-pin connector -T18b-
C 20-pin connector -T20d-
