Engine Control Module (ECM) Connector End Views (J623, T94, T60)

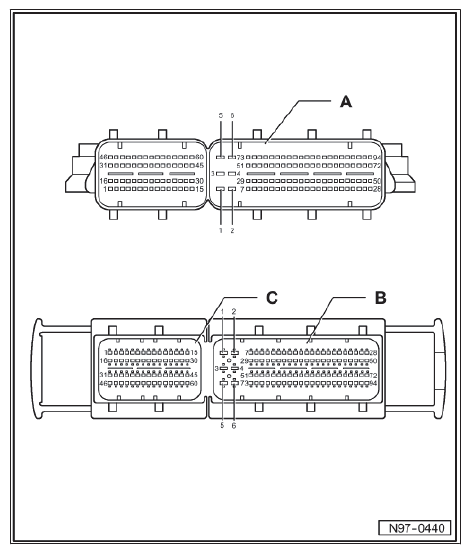

Fig 1: Engine Control Module (ECM) Connector End Views (J623, T94, T60)
G10375922
A Engine Control Module (ECM) -J623-
B 94-pin connector -T94-
C 60-pin connector -T60-
