Transmission, Without A Sealing Cap CIRCLIP: Notes

-- Transmission housing without the sealing cap circlip -A-.

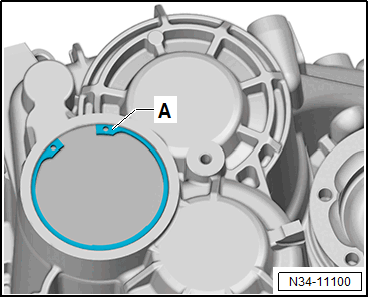

Fig 1: Transmission Housing Without Sealing Cap Circlip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and workshop equipment required

• Holding Plate VW 309
• Holding Fixture VW 313
• Transmission Support VW 353
• Thrust Tube VW 455 or Sleeve 3160
• Slide Hammer-Complete Set VW 771
• Extractor Lever VW 681
• Bracket 30-211A
• Thrust Piece T10042
• Thrust Piece T40008
• Torque Wrench (5-50 Nm) V.A.G 1331
• Hot Air Blower V.A.G 1416
• Drift T10169 or T10362
• Socket and Extended Bit T10107 or T10107 A
