Insulation Assembly Overview

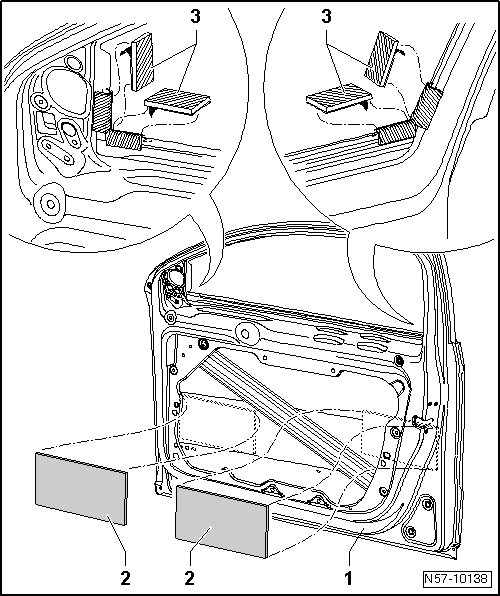

Fig 1: Identifying Insulation, Assembly Overview
GWWN57-10138Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Door
  2. Insulation
    • Self-adhesive
    • Installing:

      -- Cut to fit as necessary and align between the door edges.

      -- Heat using a hot air gun V.A.G 1416 and press onto the outer door panel.

  3. Adhesive strips
    • Quantity: 4
    • 20 mm x 40 mm commercially available cloth reinforced adhesive tape
