Overview Of Drive Pinion Components

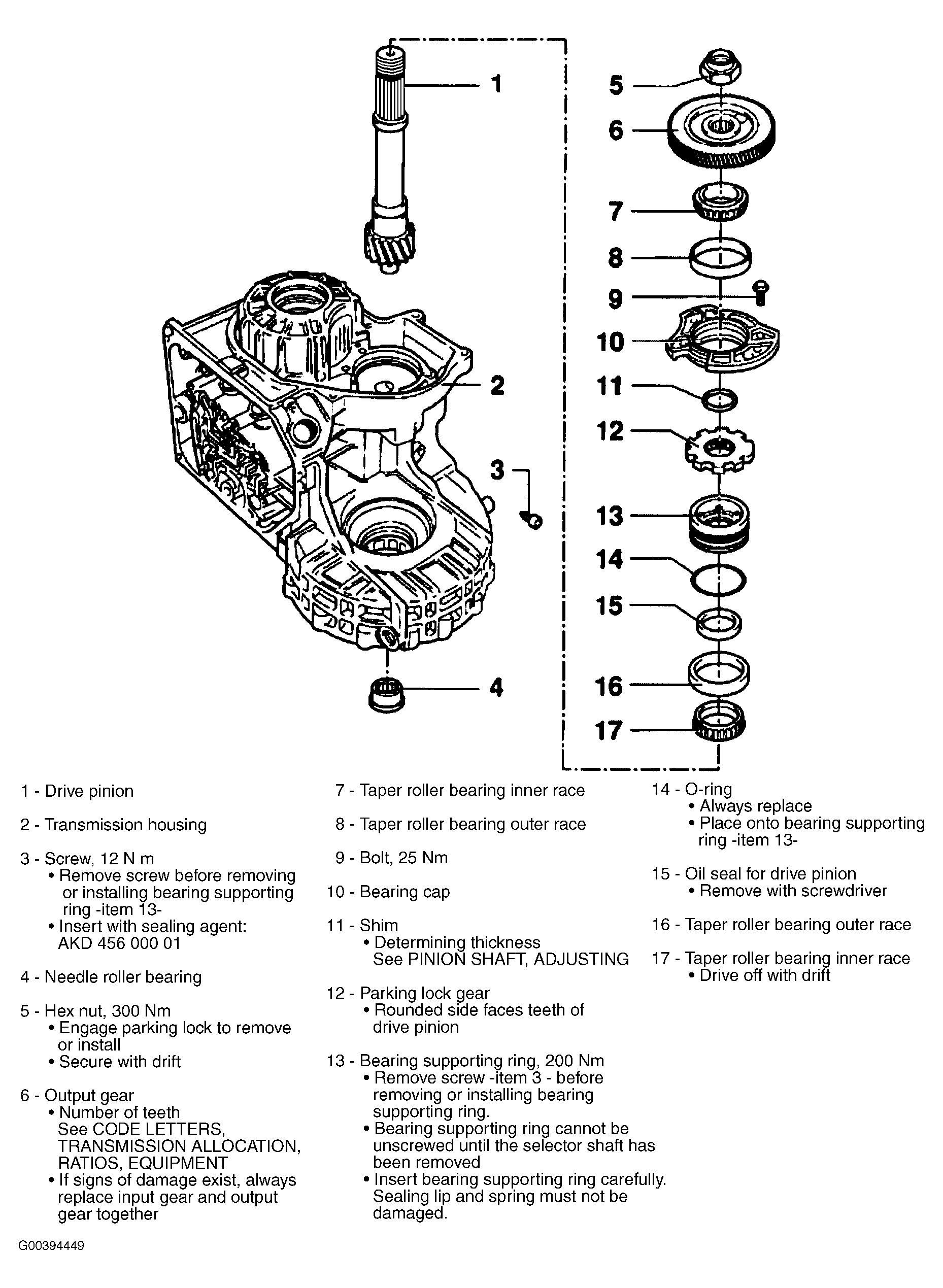

Fig 1: Overview Of Drive Pinion Components

G00394449

Courtesy of VOLKSWAGEN UNITED STATES, INC.
