Windshield, removing

Remove front wiper arms (M8 nuts).

Tightening torque: 20 N.m (15 ft lb)

Loosen screw heads -1- several turns (tension taken off of clip) and pull out together with clip.
Remove seal -3- and remove plenum cover -4-.

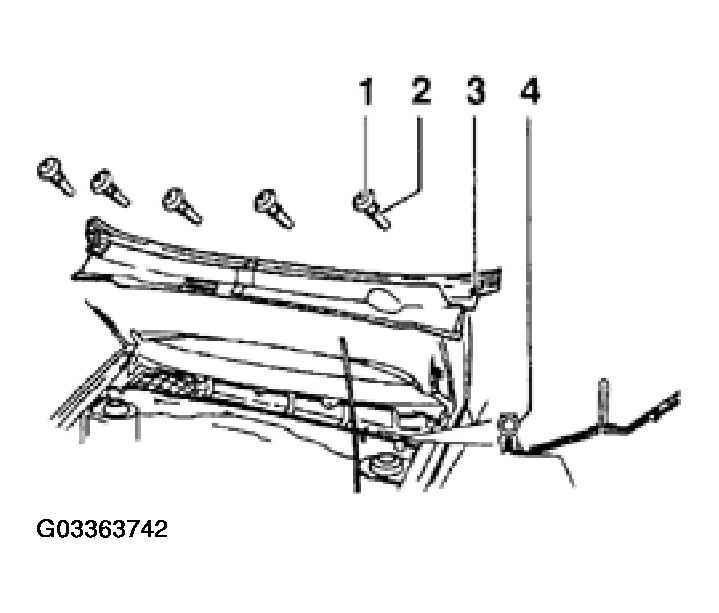

Fig 1: Removing Screws, Seal And Plenum Cover

G03363742

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Twist to remove inside rear-view mirror from adhesive plate.
Remove wind protection trim. See REAR WINDOW, INSTALLING .
Remove A-pillar trim. See A-PILLAR TRIM, REMOVING AND INSTALLING .
