Removal & Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Manufacturer does not provide specific procedure for removal and installation. As an aid, see Fig 1 .

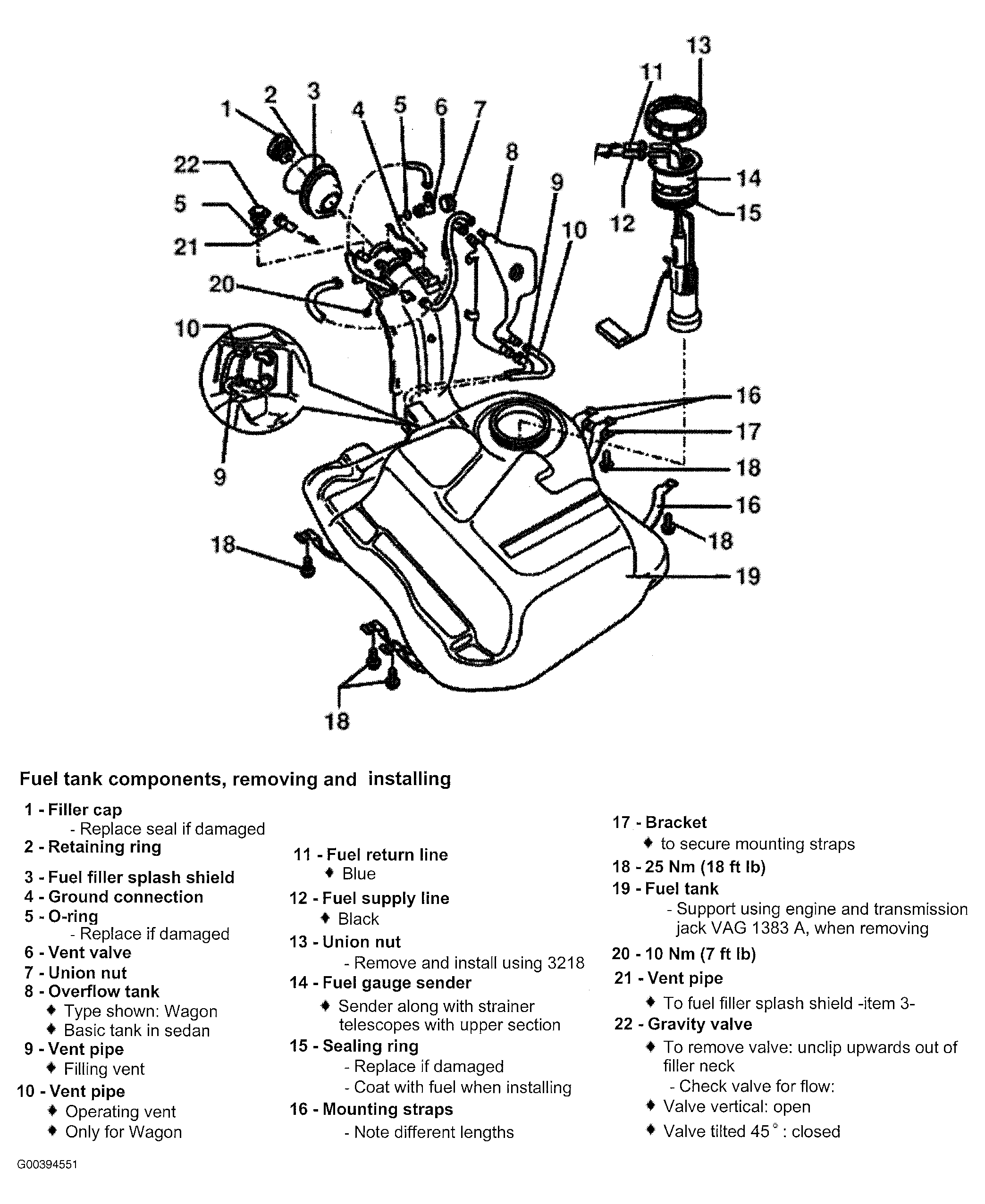

Fig 1: Exploded View Of Fuel Tank & Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.
