Removal & Installation

WARNING: This page is about a different variant/trim than selected.

Manufacturer does not provide specific removal & installation procedures. As an aid, see Fig 1 .

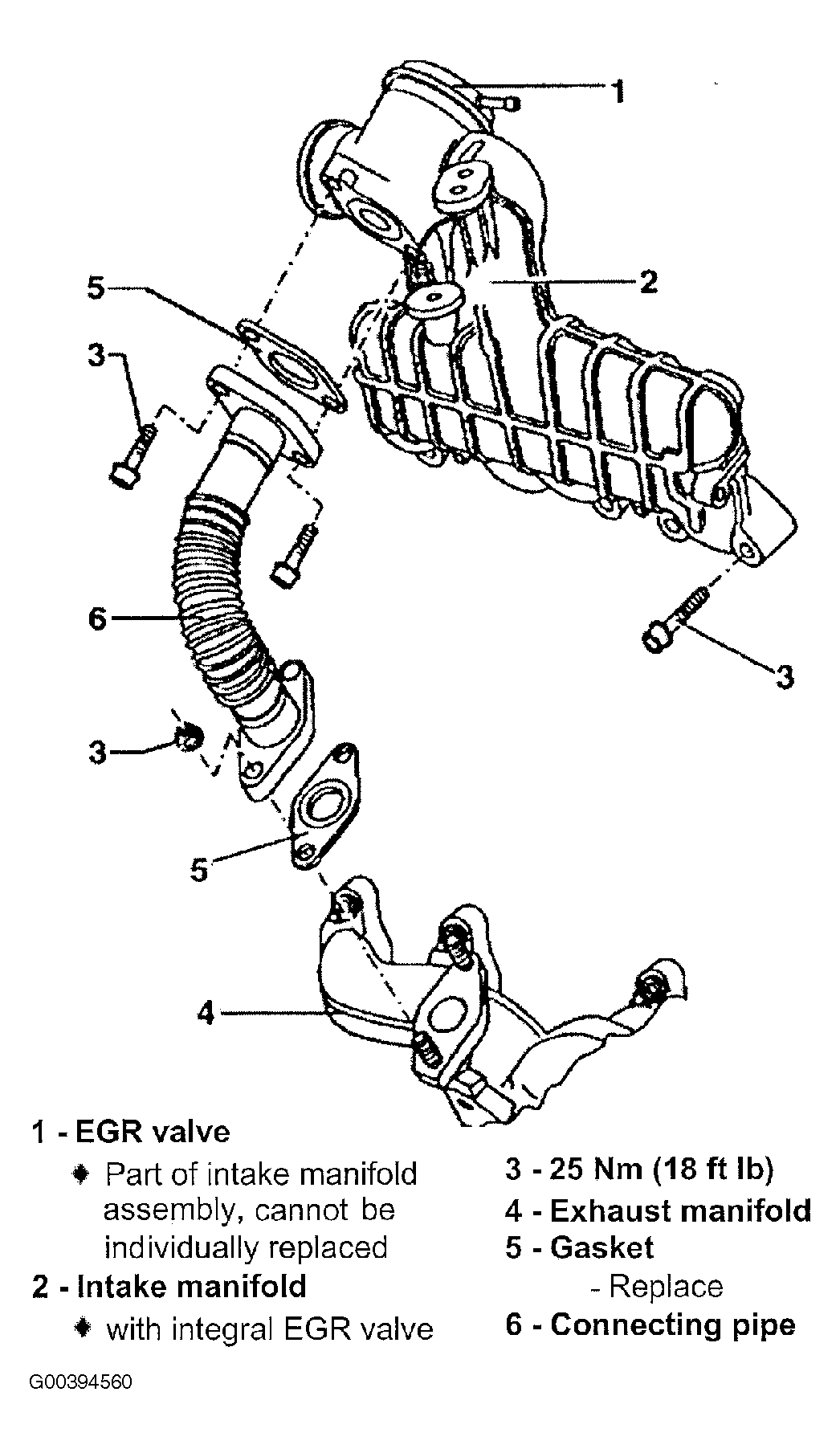

Fig 1: Exploded View Of EGR System Components
G00394560Courtesy of VOLKSWAGEN UNITED STATES, INC.
