Temperature Control Lever

Move temperature control lever to extreme left position. Place heater control valve lever in closed position. Secure cable with a clip.

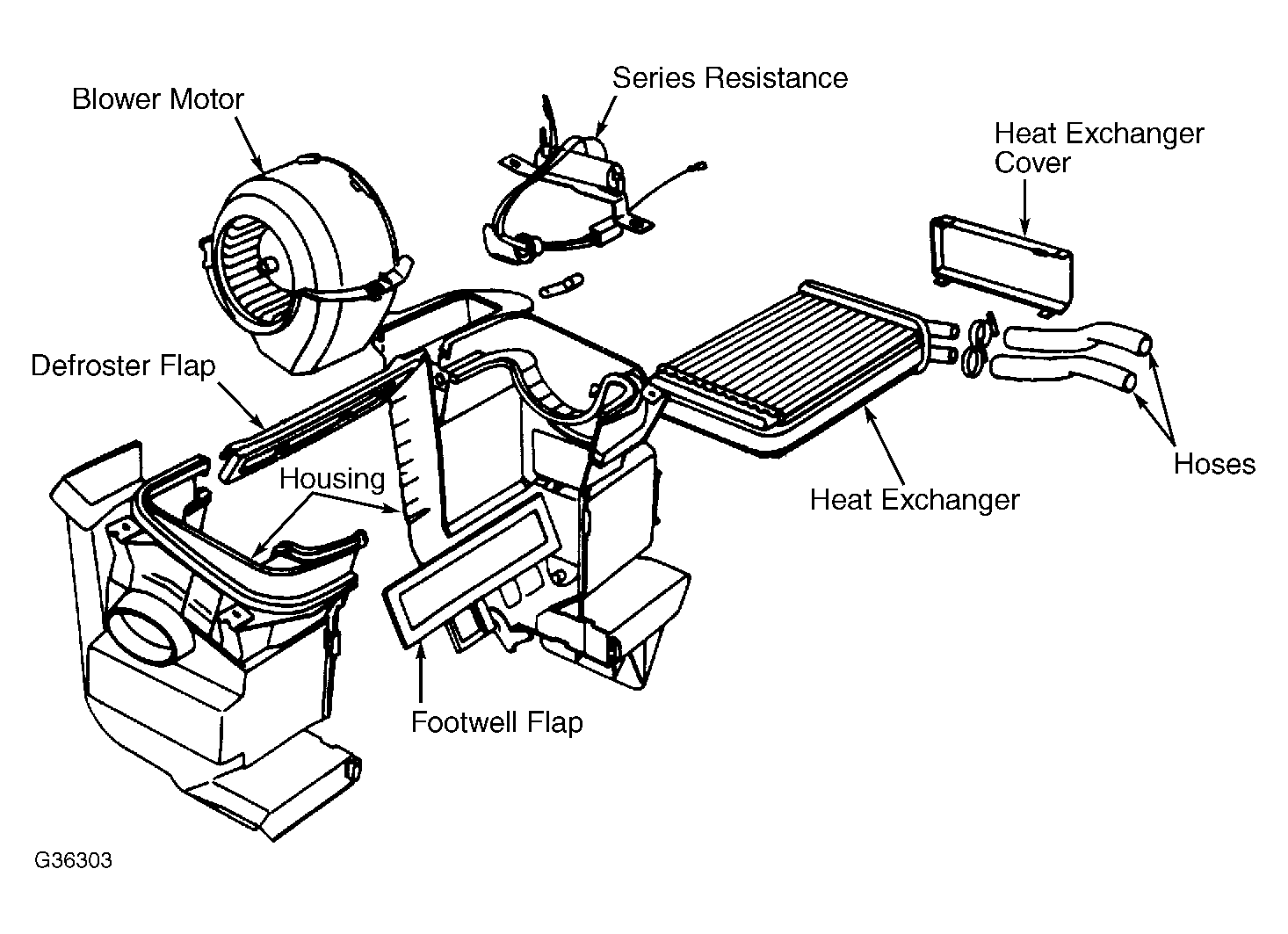

Fig 1: Typical Volkswagen Heater System Components
G36303
