Front Lower Control Arm Removal And Installation/Replacement

Mobile Repair Possible:  No

Special Tools Required:

Transmission Jack/Lifter - no part number

Ball Joint Release Tool - No part number

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Lift the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
2. Remove wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
3. Remove underbody front air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

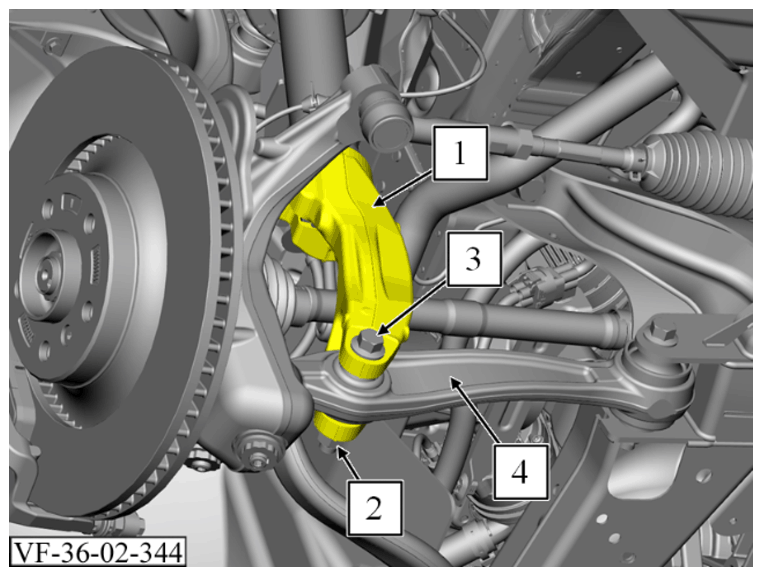

4. Support the front strut yoke (1) with a gear jack.

   Removal Note: Lift the front strut yoke (1)  with the gear jack slightly to loosen the screw connection more easily.

5. Loosen the nut (2) and remove the bolt (3).

   Replace with new only.

   Tightening torque - First Pass: 140 Nm

   Tightening torque - Final pass: 90° Rotation Angle

6. Remove the front strut yoke (1) from the front lower control arm (4).

   Courtesy of VINFAST, LLC

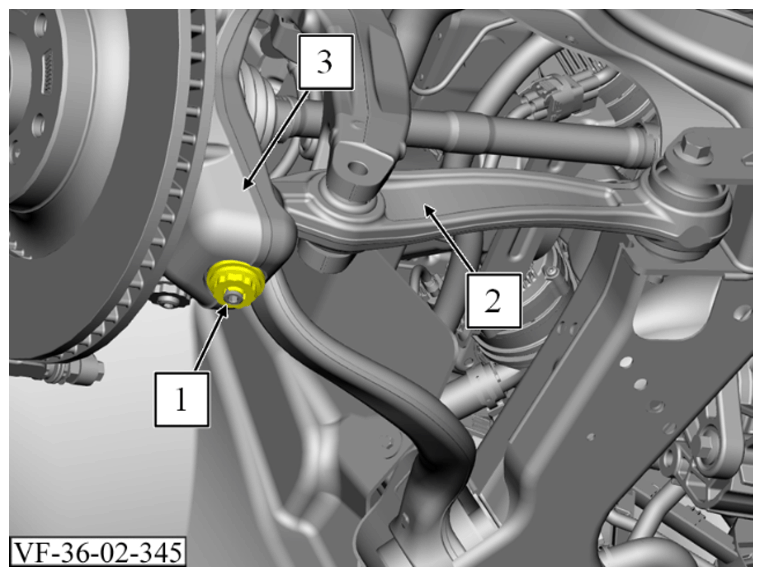

7. Loosen the nut (1).

   Replace with new only.

   Tightening torque - First Pass: I20 Nm

   Tightening torque - Second Pass: loosen nut one turn

   Tightening torque - Final pass: 80 Nm

8. Remove the front lower control arm (2) from the steering knuckle (3). If necessary, press out with a press-out tool.

   Courtesy of VINFAST, LLC

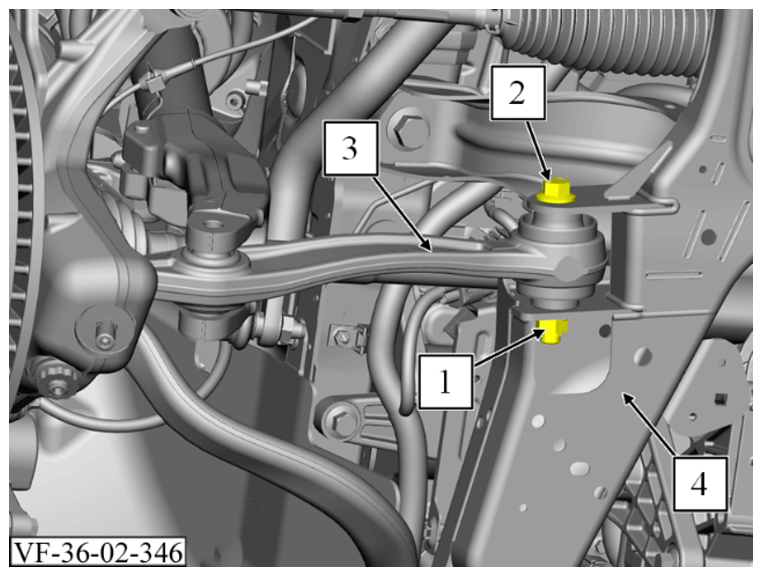

9. Loosen the nut (1) and remove the bolt (2).

   Replace with new only.

   Tightening torque - First Pass: 140 Nm

   Tightening torque - Final pass: 90° Rotation Angle

10. Remove the front lower control arm (3) from the front sub frame/engine cradle (4).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install underbody front air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
3. Install wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
