Front Compartment Harness Routing And Connector Information

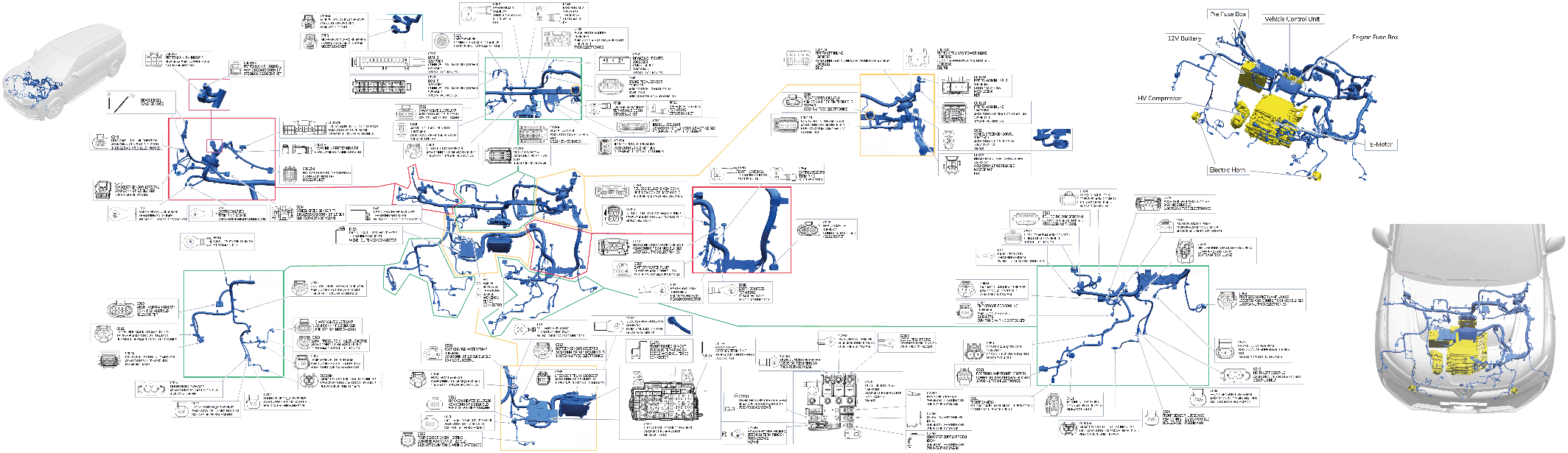

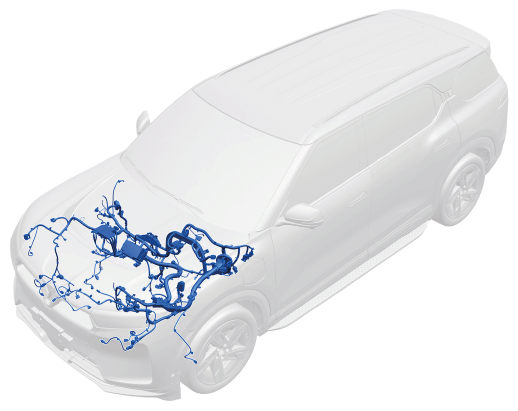

Fig 1: Overview Perspective

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC
