Stop Lamp Switch Removal And Installation/Replacement And Adjustment

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove driver instrument under tray panel. Refer to INSTRUMENT PANEL UNDER TRAY REMOVAL AND INSTALLATION/REPLACEMENT (DRIVER)
2. Unlock and disconnect the electrical Connector (1).

   Courtesy of VINFAST, LLC

3. Press and hold the brake pedal.

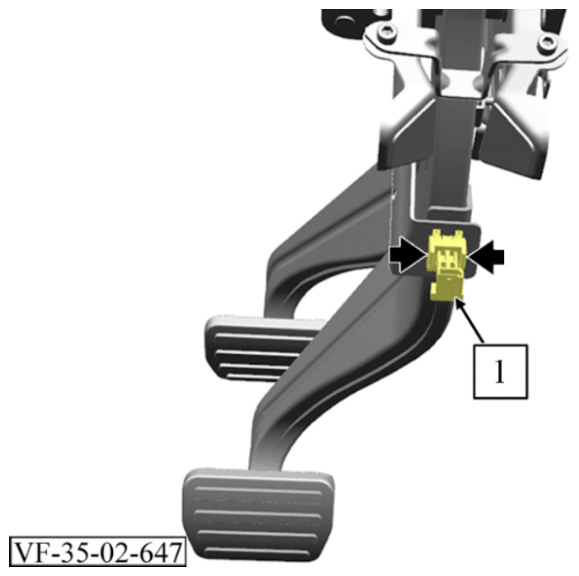

4. Press the latches (arrows) together and remove the brake pedal light switch (1) out of the holder.

Installation Procedure:

Courtesy of VINFAST, LLC

Installation note: Press and hold the brake pedal. Carefully press the brake light switch (1) as far as it will go and then slowly release the brake pedal.

1. Installation is the reverse of removal procedure, noting the following All fasteners must be tightened to torque specification!
2. Install driver instrument under tray panel. Refer to INSTRUMENT PANEL UNDER TRAY REMOVAL AND INSTALLATION/REPLACEMENT (DRIVER)
