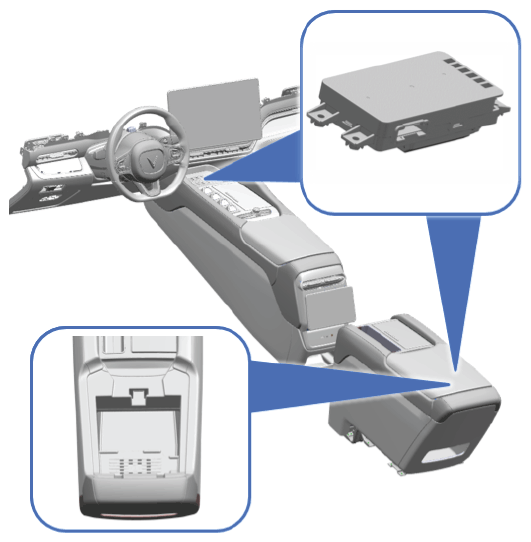

Wireless Charger
The wireless charger provided in the front console of the vehicle can charge Qi compatible devices wirelessly, providing output up to 15W. To charge with the wireless charging, place the phone on the rubber mat. Charging starts when ignition is ON and all doors are closed.
The wireless charger can be set to "On/Off", depending on the user's requirements. The charger is equipped with LIN which enables it to show charging status and notifications of the phone in the center display (MDU).
When ignition is OFF and doors are opened, a pop-up message in the MDU will notify the user.
Example of Schematic Diagram:
