Front Fender Foam Bag Removal And Installation/Replacement

Mobile Repair Possible: Van/Car

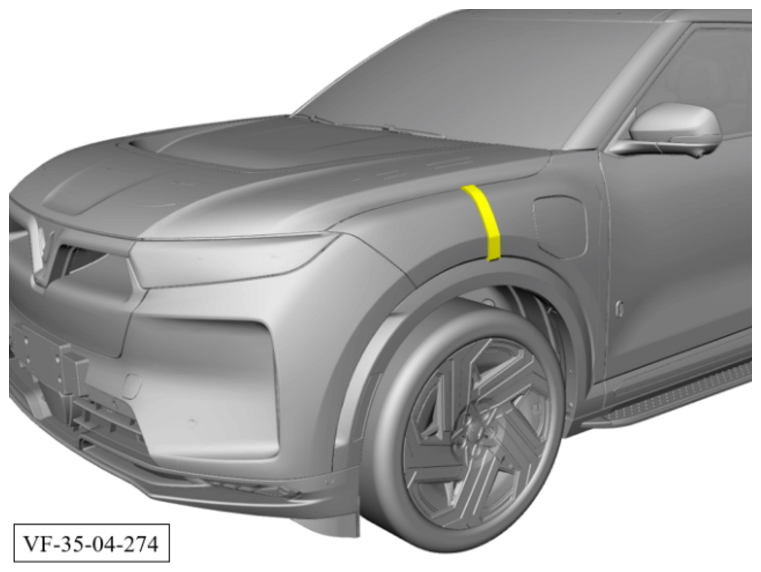

Overview:

Courtesy of VINFAST, LLC

WARNING: Overhead Suspended Load and Falling Parts
Failure to follow specified procedures may result in death or serious injury when elevated load or components are incorrectly secured/supported.

All lifting equipment weight rating must meet or exceed the weight of the vehicle and any contents
The lifting equipment must be in good condition and approved for use
Only lift the vehicle from the identified lift points
Ensure vehicle is stable before performing any work underneath
Ensure there are no loose components which may fall
Always use personal protective equipment (PPE)
Seek assistance when handling larger components

WARNING: Crushing by moving parts
Failure to follow specified procedures may result in death or serious injury due to front fender foam bag.

Secure the component against uncontrolled movement.
Always use personal protective equipment (PPE)
Ensure vehicle is correctly disabled/powered down to prevent unexpected motion or activation of components.

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

Remove front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
Remove front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT

Courtesy of VINFAST, LLC

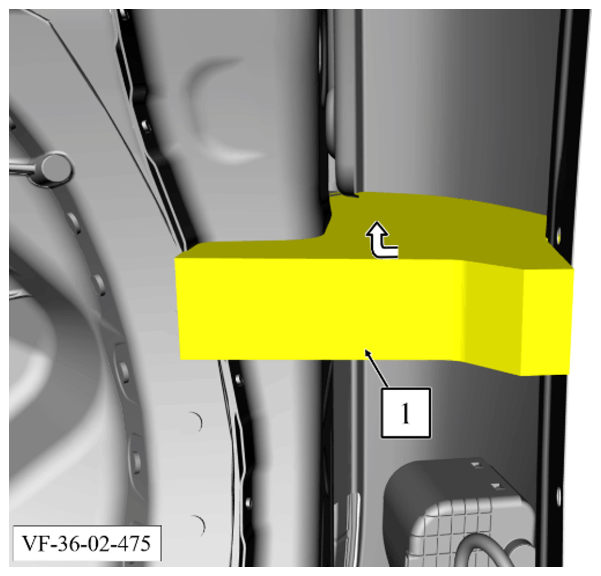

Turn the front fender foam bag by 90° and remove it downwards.

Installation Procedure:

Installation is the reverse of removal procedure, noting the following.
Install front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT
Install front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
