Rear Floor Console Assembly Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

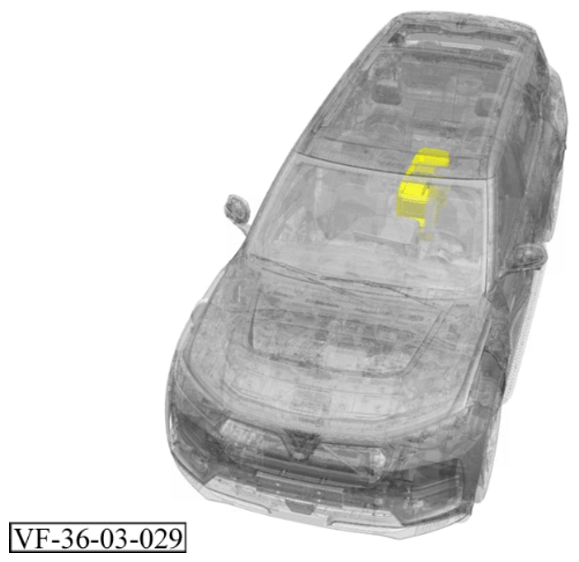

Overview:

Courtesy of VINFAST, LLC

Removal Procedure:

1. Disconnect the 12V Battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove rear floor console rear lower cover. Refer to REAR FLOOR CONSOLE REAR LOWER COVER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

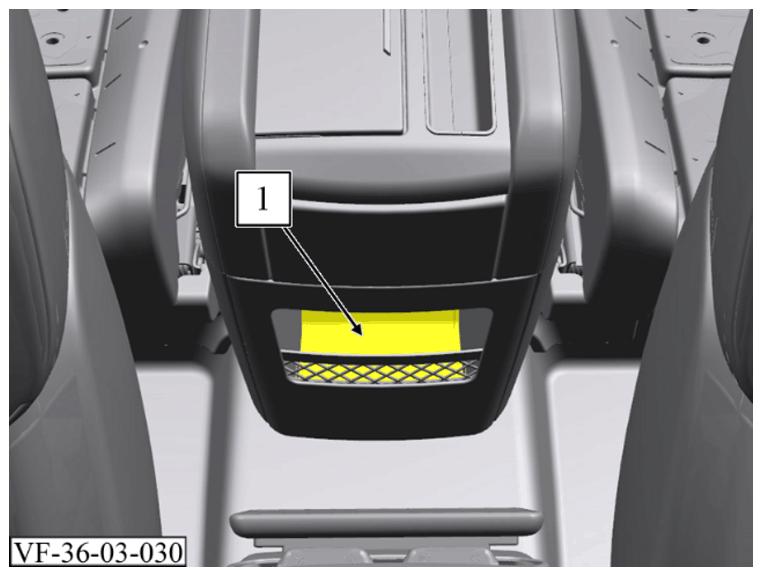

3. Remove the rubber mat (1).

   Courtesy of VINFAST, LLC

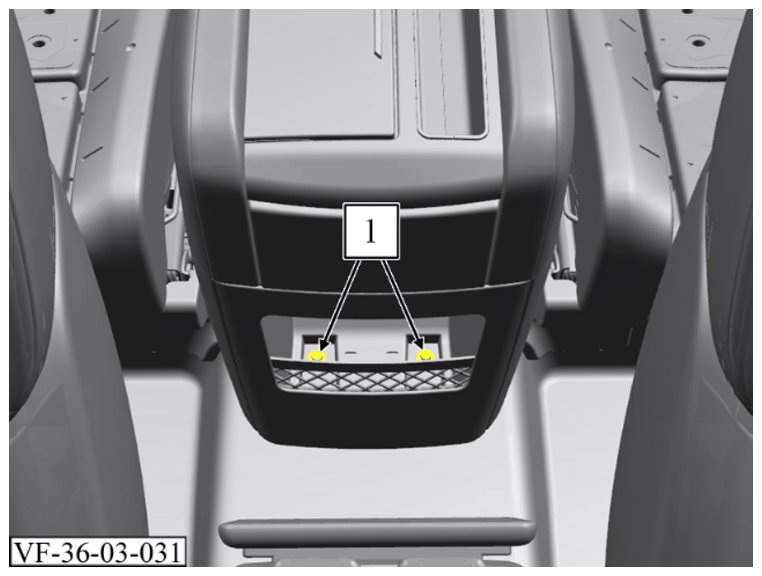

4. Remove the 2 bolts (1).

   Torque: 3.5 Nm

   Courtesy of VINFAST, LLC

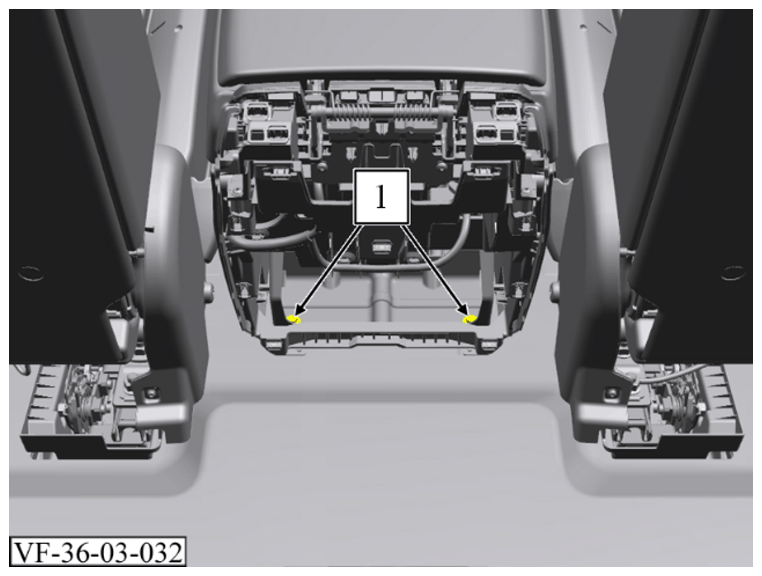

5. Remove 2 bolts (1).

   Torque: 3.5 Nm

6. Pull up the rear floor console assembly (1).

   Courtesy of VINFAST, LLC

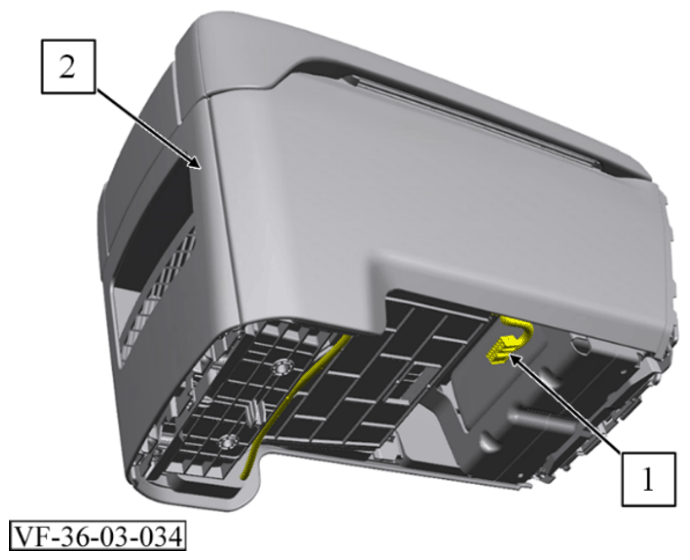

7. Unlock and disconnect electrical connector (1).
8. Remove rear floor console assembly (2).

   Installation Procedure:

9. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

10. Install rear floor console rear lower cover. Refer to REAR FLOOR CONSOLE REAR LOWER COVER REMOVAL AND INSTALLATION/REPLACEMENT
11. Reconnect 12V battery negative cable. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
