Front Floor Console Ambient Light Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side

1. Remove the Front Floor Console Side Upper Trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

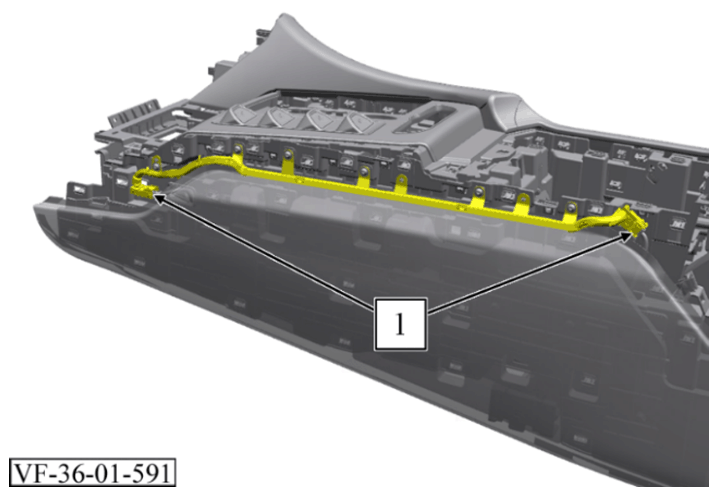

2. Unlock and disconnect both electrical connectors (1).

   Courtesy of VINFAST, LLC

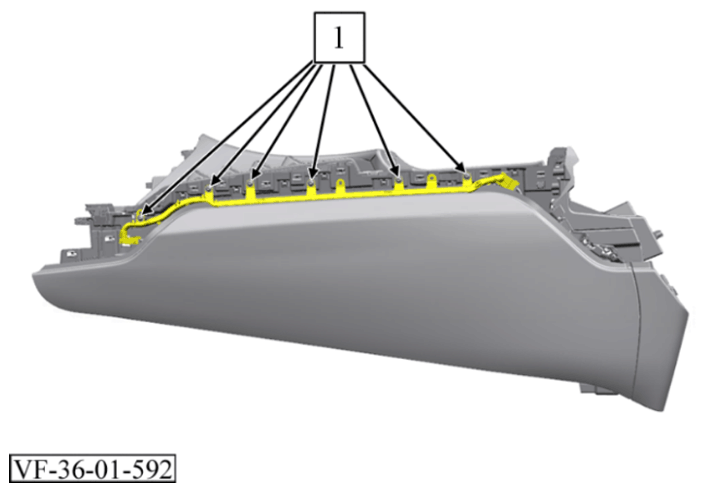

3. Remove 6 screws (1).

   Torque: 1.5 Nm

   Courtesy of VINFAST, LLC

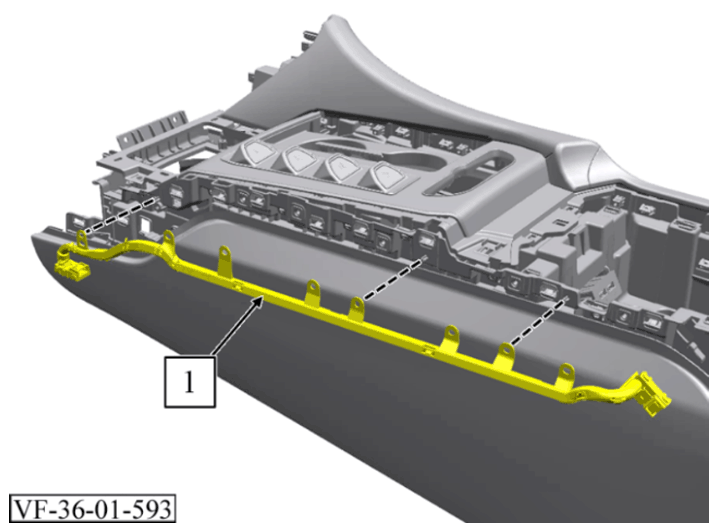

4. Remove the front floor console ambient light (1).

Installation Procedure

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install the Front Floor Console Side Upper Trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT
