Short Range Radar Pigtail Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove rear bumper fascia. Refer to REAR BUMPER FASCIA REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

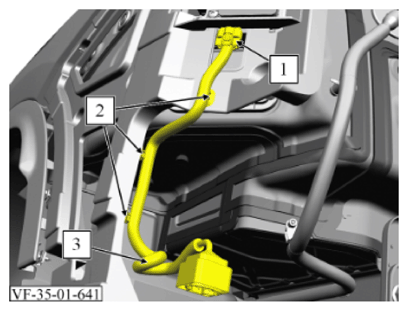

2. Unlock and disconnect electrical connector (1) from short range radar.
3. Detach 3 cable mounts (2) from rear bumper fascia guide.
4. Remove short range radar pigtail (3).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install rear bumper fascia. Refer to REAR BUMPER FASCIA REMOVAL AND INSTALLATION/REPLACEMENT
