Home >> VinFast >> 2023 >> VF8 Plus >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> Wiring Harnesses >> Component Identification >> IP Harness Connector And Module Locations >> IP Harness Overview >> IP Harness Connector and Module on lower right side

IP Harness Connector and Module on lower right side

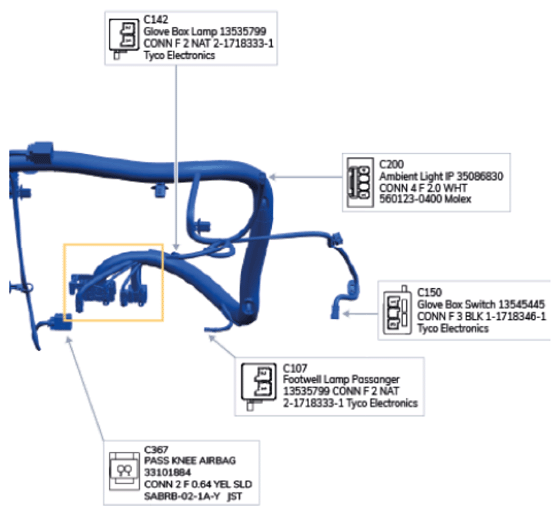

G15971513Courtesy of VINFAST, LLC

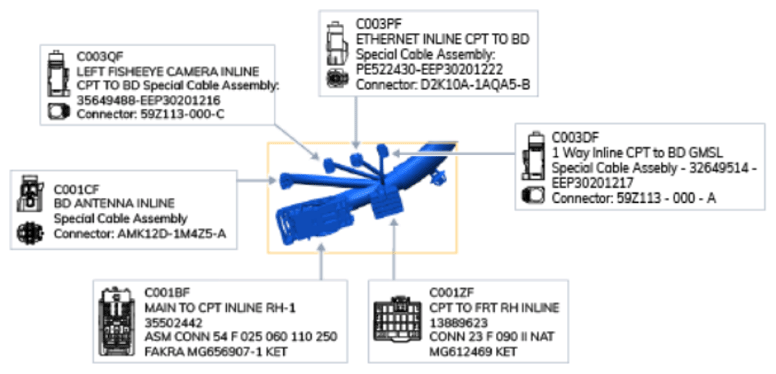

G15971514Courtesy of VINFAST, LLC
