eMotor Radiator Lower Mount Bracket Removal And Installation/Replacement

Mobile Repair Possible:  No

Overview:

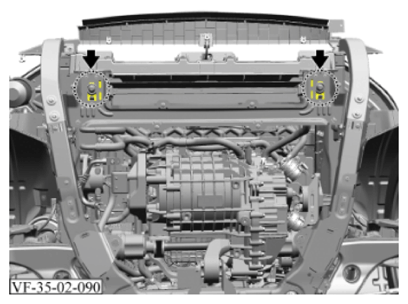

Fig 1: eMotor Radiator Lower Mount Bracket Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

The procedure for the left component side is identical to the right side.

1. Remove the HV battery radiator. Refer to HV BATTERY RADIATOR REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

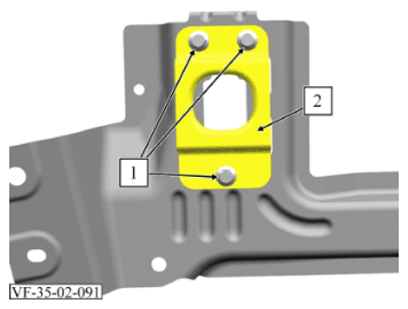

2. Remove 3 bolts (1).

   Torque: 8 Nm

3. Remove eMotor radiator lower mount bracket (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install the HV battery radiator. Refer to HV BATTERY RADIATOR REMOVAL AND INSTALLATION/REPLACEMENT
