Front Side Door Lock Cylinder Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Ensure that the window is completely closed.
2. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
3. Remove front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

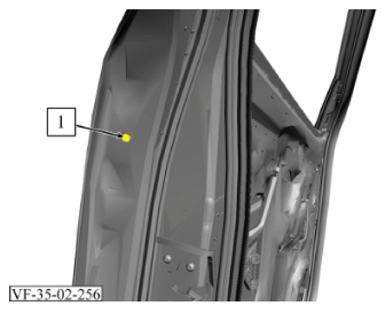

4. Remove the plug (1).

   Courtesy of VINFAST, LLC

5. Loosen bolt (1), do not remove.

   Torque: 2.6 Nm

   Courtesy of VINFAST, LLC

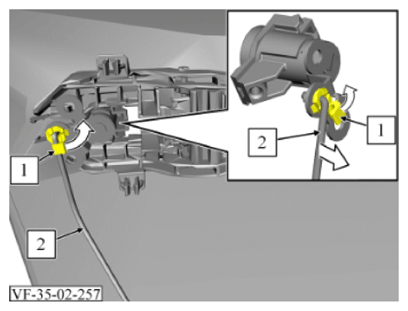

6. Twist clip (1) in arrow direction and detach lock cylinder rod (2).

   Courtesy of VINFAST, LLC

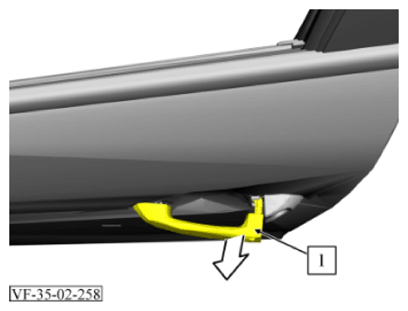

7. Pull out the door handle (1) as far as possible.

   Courtesy of VINFAST, LLC

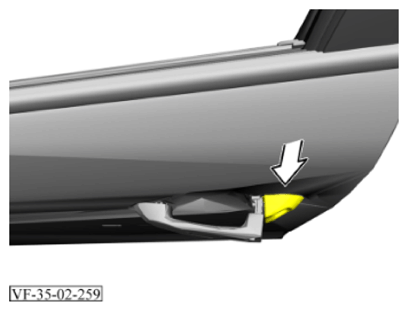

8. Remove front side door lock cylinder with the side door handle lock cap.

   Courtesy of VINFAST, LLC

9. Remove the lock cylinder (2) from the side door handle lock cap (1).

Installation Procedure:

Courtesy of VINFAST, LLC

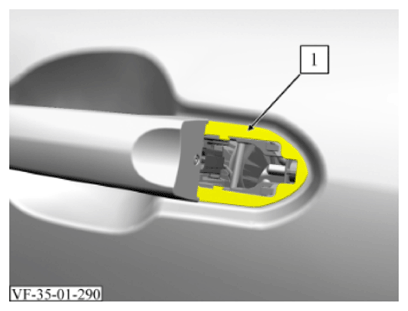

1. Ensure that the sealing (1) is positioned correctly.

   Courtesy of VINFAST, LLC

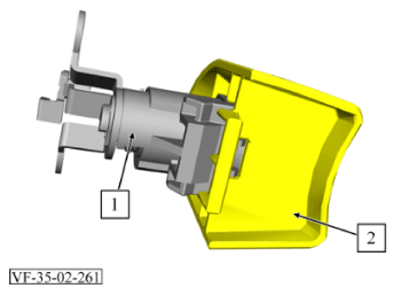

2. Assemble front side door lock cylinder (1) and side door handle lock cap (2).

   Courtesy of VINFAST, LLC

3. Pull out the door handle (1) as far as possible.

   Courtesy of VINFAST, LLC

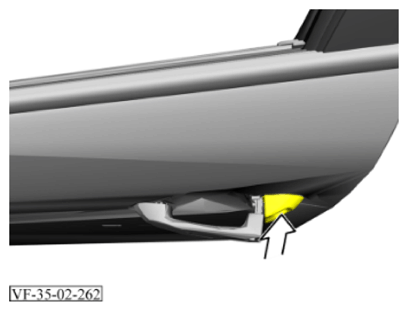

4. Install front side door lock cylinder with the side door handle lock cap.

   Courtesy of VINFAST, LLC

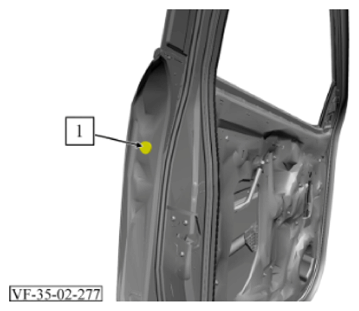

5. Tighten bolt (1).

   Torque: 2.6 Nm

   Courtesy of VINFAST, LLC

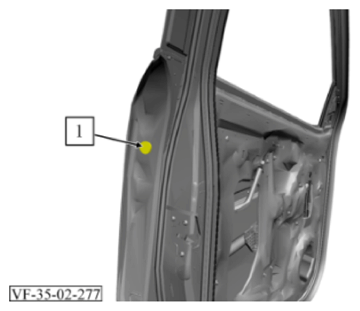

6. Install plug (1).

   Courtesy of VINFAST, LLC

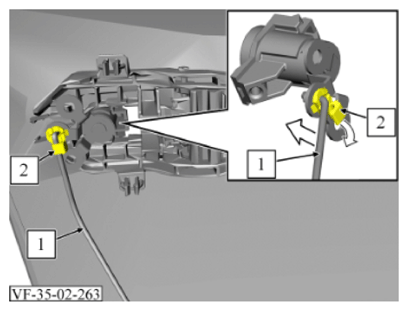

7. Attach locking cylinder rod (1) and twist clip (2) in arrow direction, until it noticeably engages on connecting bar.
8. Install front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
9. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
