Charge Port Lid Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Open the charge port door.

   Courtesy of VINFAST, LLC

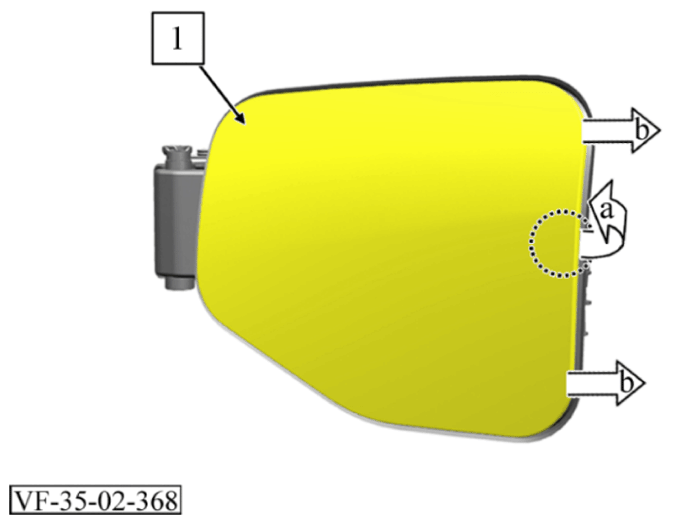

2. Carefully lever the charge port lid (1) in the marked area first in the direction of the arrow (a) using a suitable plastic wedge and then remove it from the charge port door in the direction of the arrow (b).
3. Remove charge port lid (1).

Installation Procedure:

1. Installation is the reverse of removal procedure.
