Charge Port Housing Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Disconnect the 12V Battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove front fender. Refer to FRONT FENDER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

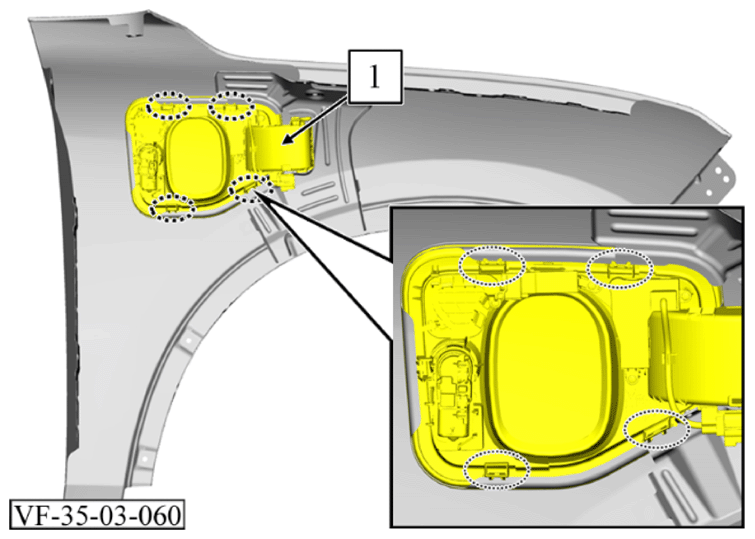

3. Using a suitable tool unclip the charge port housing (1) in the marked area out of the fender.

   Courtesy of VINFAST, LLC

4. Guide out the Charge port housing (1) in direction of the arrow and remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front fender. Refer to FRONT FENDER REMOVAL AND INSTALLATION/REPLACEMENT
3. Reconnect the 12V Battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
