Front Bumper Side Energy Absorbers Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove front bumper fascia. Refer to FRONT BUMPER FASCIA REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

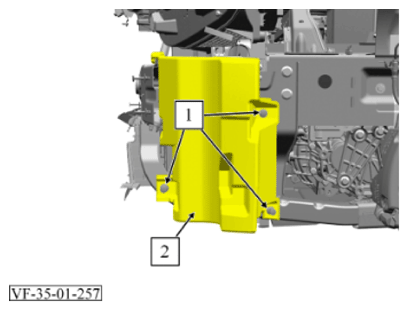

   Driver side:

2. Remove 3 rivets (1).
3. Remove front bumper side energy absorber (2).

   Courtesy of VINFAST, LLC

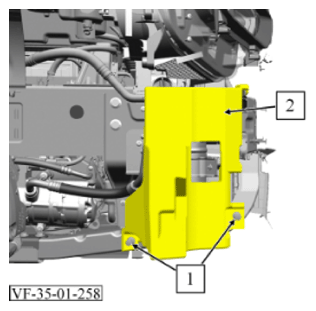

   Passenger side:

4. Remove 2 rivets (1).
5. Remove front bumper side energy absorber (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install front bumper fascia. Refer to FRONT BUMPER FASCIA REMOVAL AND INSTALLATION/REPLACEMENT
