12V Battery Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

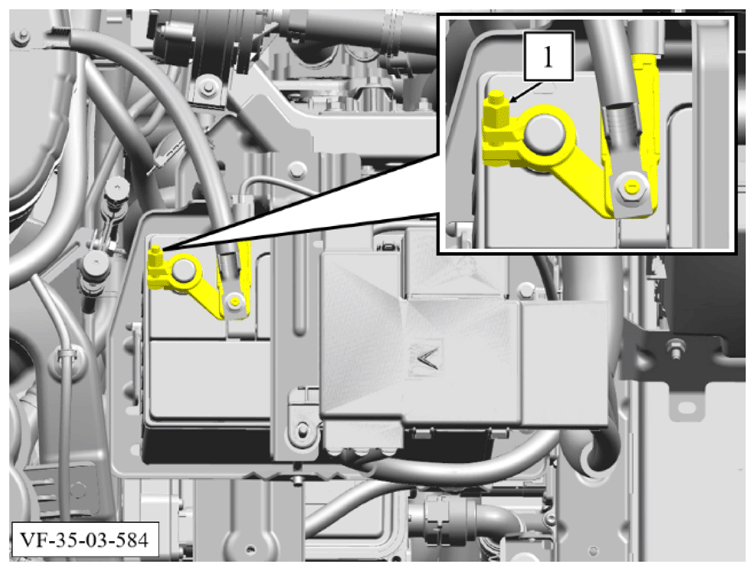

2. Loosen nut (1) do not remove it.

   Torque: 6 Nm

3. Pull off the battery negative cable from the Battery negative terminal by carefully moving to and for. Do not pry using a tool.
4. Move the battery negative cable to one side and secure.

   Courtesy of VINFAST, LLC

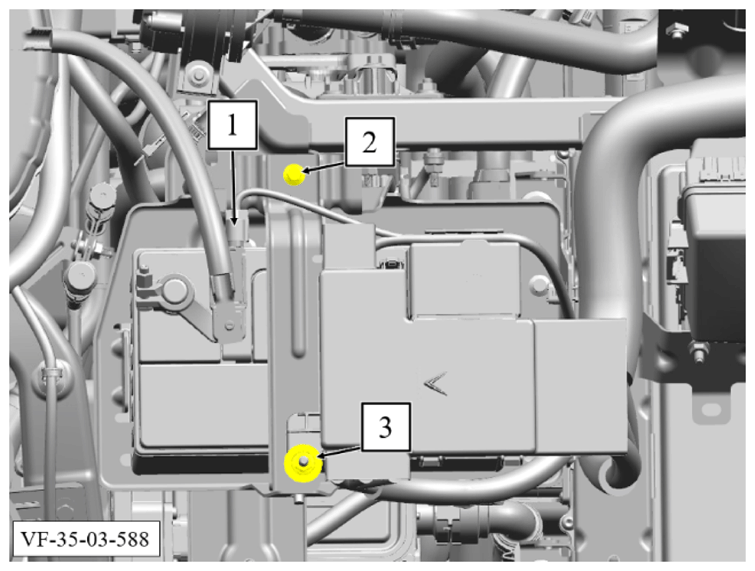

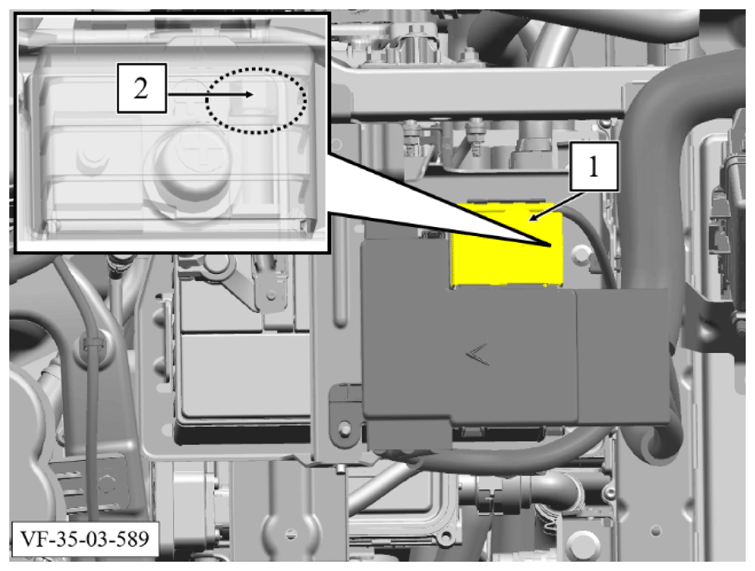

5. Unlock and disconnect electrical connector (1) from the battery sensor.
6. Remove bolt (2).

   Torque: 8 Nm

7. Remove nut (3).

   Torque: 8 Nm

   Courtesy of VINFAST, LLC

8. Open the cover (1) and loosen the nut (2) of the Battery positive cable.

   Torque: 6 Nm

   Courtesy of VINFAST, LLC

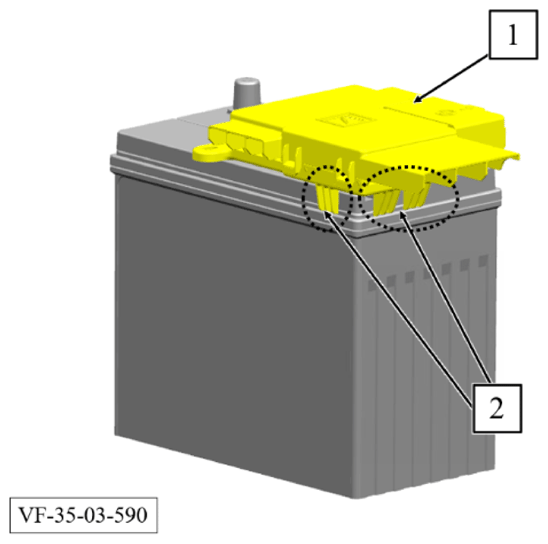

9. Loosen the pre-fuse box (2) at the markings.
10. Remove the pre-fuse box (1) from the 12V Battery upwards.

    Courtesy of VINFAST, LLC

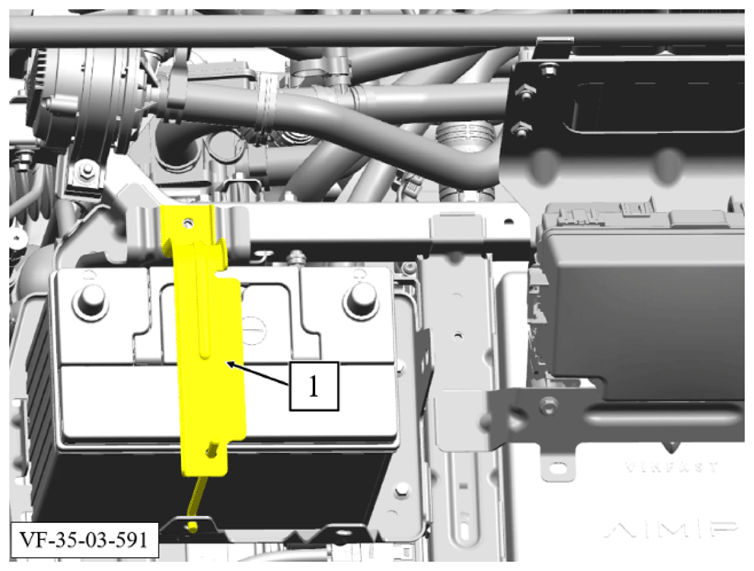

11. Remove the bracket (1).

    Courtesy of VINFAST, LLC

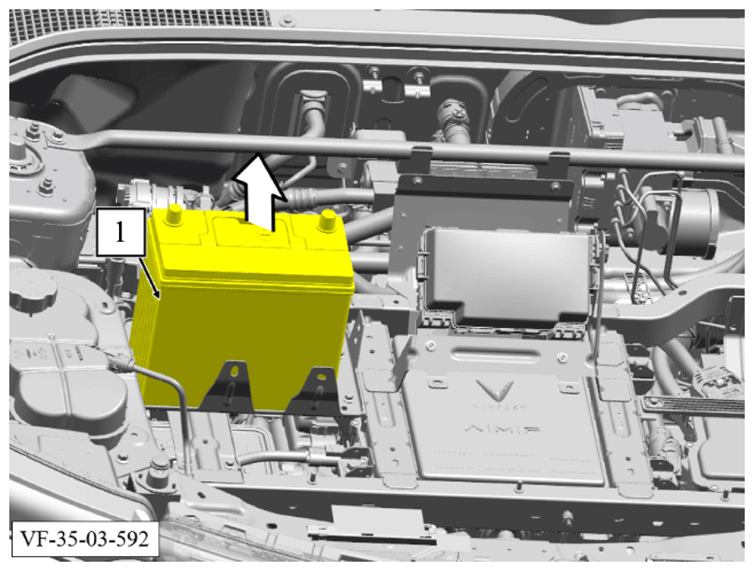

12. Remove 12V battery (1) upwards.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following All fasteners must be tightened to torque specification.
2. Install front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
