Rear Side Door Window Frame Sealing Removal And Installation/Replacement

Mobile Repair Possible: Van/Car

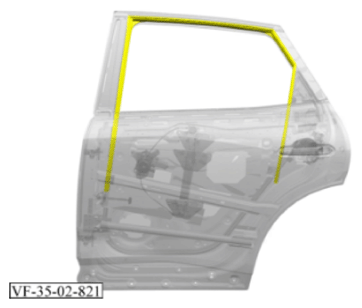

Overview:

Courtesy of VINFAST, LLC

WARNING: Crushing by moving parts
Failure to follow specified procedures may result in death or serious injury due to movement of the window regulator.

Secure the component against uncontrolled movement.
Always use personal protective equipment (PPE).
Ensure vehicle is correctly disabled/powered down to prevent unexpected motion or activation of components.

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

Remove rear side door window. Refer to REAR SIDE DOOR WINDOW REMOVAL AND INSTALLATION/REPLACEMENT
Remove rear side door window inner sealing strip. Refer to REAR SIDE DOOR WINDOW INNER SEALING STRIP REMOVAL AND INSTALLATION/REPLACEMENT
Remove rear side door speaker. Refer to REAR SIDE DOOR SPEAKER REMOVAL AND INSTALLATION/REPLACEMENT

Courtesy of VINFAST, LLC

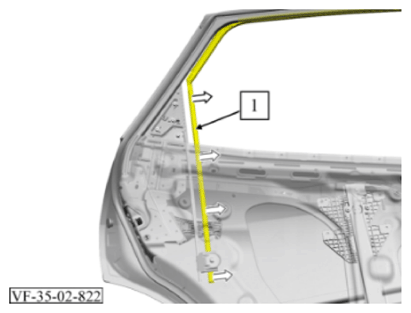

Pull off the window frame sealing (1) in the rear area in the direction of the arrow.

Courtesy of VINFAST, LLC

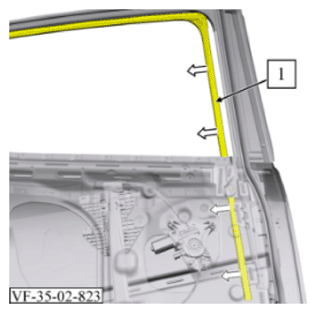

Pull off the window frame sealing (1) in the front area in the direction of the arrow.

Courtesy of VINFAST, LLC

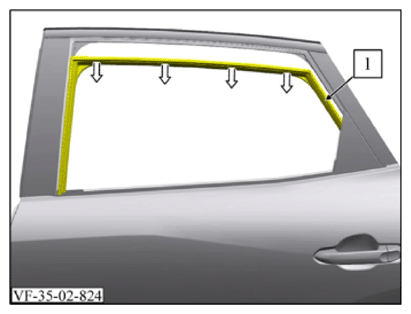

Pull off the window frame sealing (1) in the upper area in the direction of the arrow.

Courtesy of VINFAST, LLC

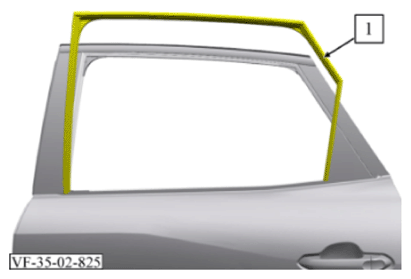

Guide out the door window frame sealing (1) and remove.

Installation Procedure:

Courtesy of VINFAST, LLC

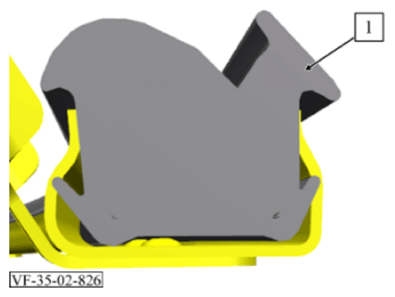

Installation note: Rear side door window frame sealing (1) must engage all around.

Installation is the reverse of removal procedure, noting the following.
Install rear side door window inner sealing strip. Refer to REAR SIDE DOOR WINDOW INNER SEALING STRIP REMOVAL AND INSTALLATION/REPLACEMENT
Install rear side door speaker. Refer to REAR SIDE DOOR SPEAKER REMOVAL AND INSTALLATION/REPLACEMENT
Install rear side door window. Refer to REAR SIDE DOOR WINDOW REMOVAL AND INSTALLATION/REPLACEMENT
