Rear Parking Assist Sensor Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

The procedure for all 4 components is the same.

1. Remove underbody rear air shield. Refer to UNDERBODY REAR AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

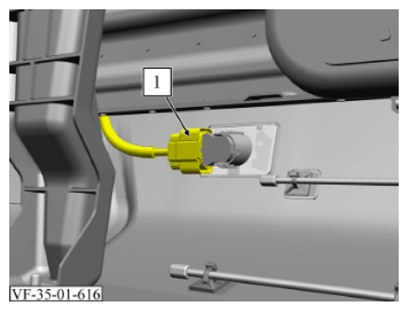

2. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

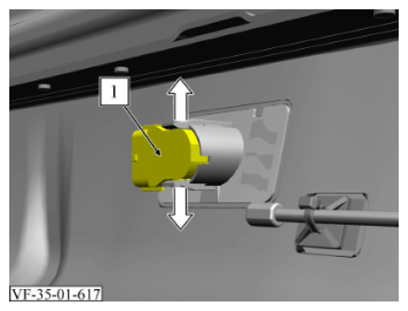

3. Unlock the latches with a screwdriver in arrow direction and pull the rear parking assist sensor (1) out of the bracket.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install underbody rear air shield. Refer to UNDERBODY REAR AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
