Front Mid Range Radar Calibration (Launch Mobile)

Mobile Repair Possible: No

Required Setup Area:

Ensure the vehicle is placed in a location with sufficient clear space around the vehicle:

Front Mid-Range Radar Calibration - 1 meter either side of the vehicle and 3 meters in front

Workstation and Vehicle Setup Considerations:

FLAT and UNIFORM FLOOR SURFACE with sufficient space for the vehicle and equipment at same level
UNIFORM and BRIGHT ILLUMINATION by a non-frequency flash light source such as:
- LED Lights
- Industrial Lighting complying with international standards
- Dual Light Source in opposite phase
Light source should ensure NO REFLECTED SPOTS or SHADOWS on calibration targets
Avoid excessive natural light through windows or door openings
Avoid changes in brightness such as vehicles driving past with lights on
Vehicle should be in PARK and "Driver Present" mode (Ignition ON but eMotor OFF)
Steering Wheel CENTERED pointing straight ahead
Doors and Hood in CLOSED position
Mirrors in UNFOLDED position
All Vehicle Exterior Lights OFF
Tires INFLATED to specification
Vehicle wheel alignment within specification

Key Measurements:

Front Mid Range Radar Flat Reflector Plate (LAM05-02V) must be aligned with vehicle centre line and:

Positioned 2290 mm forward of the Centre Line of the Front Axle
At the same height as the Front Mid Range Radar Module

Front Mid-Range Radar Calibration

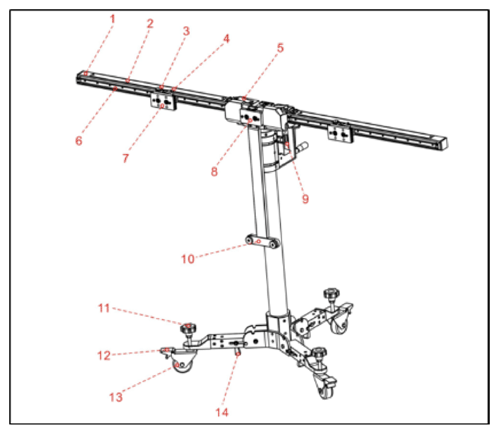

Take out the Launch Mobile Calibration Frame and place it on flat ground.

Courtesy of VINFAST, LLC

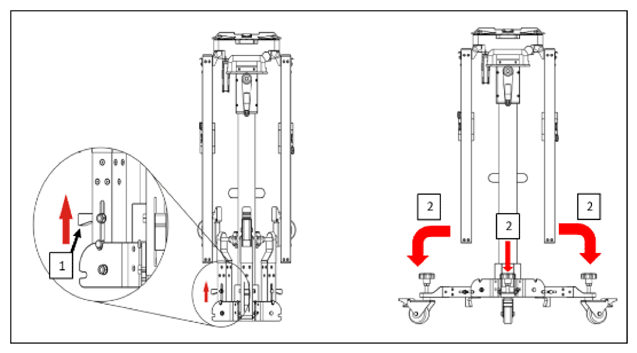

Push the lever (1) upwards as indicated and fold down the 3 caster wheel legs (2).

Courtesy of VINFAST, LLC

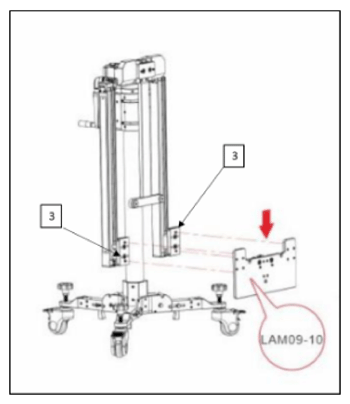

The cross bars should be left in the down or vertical position. Move the 2 sliders (3) all the way to the bottom of the cross bars. Install the mounting plate (LAM09-10) onto the mounting lugs on the 2 sliders.

Courtesy of VINFAST, LLC

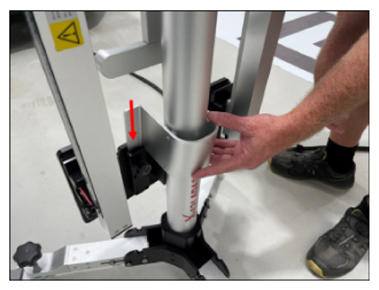

Slide the support brace around the main tube and into the slots on the back of the mounting plate (LAM09-10).

Courtesy of VINFAST, LLC

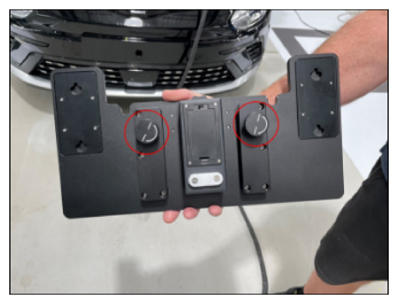

Fasten the 2 locking screws on the back of the mounting plate (LAM09-10).

Courtesy of VINFAST, LLC
Position the Launch Mobile Calibration Frame in front of the vehicle approximately 3 meters from the front of the vehicle. This will allow clear space for taking measurements and accurately positioning the frame. Attach the Cross Laser Module (LAM09-02) to Point (8) on the Calibration Frame but do not turn on at this stage.

Courtesy of VINFAST, LLC

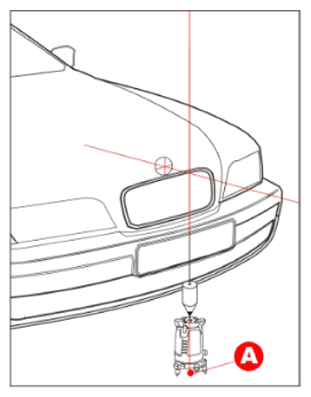

Determine the center line of the vehicle by suspending the Plumb Line (LAM09-06) against the center of the front vehicle "V" logo and let it naturally drop to the ground. Lightly flick the string with your finger several times to confirm the string is perpendicular to the ground. Mark the ground with a Cross Sticker to indicate the Front Center Point of the vehicle - Point (A).
Place the Five-Line Laser Instrument (LAM09-01) at Point (A). The Logo on the Five-Line Laser Instrument should be facing towards the rear of the vehicle. Ensure the red dot underneath the Five-Line Laser Instrument is aligned with the Cross Sticker at Point (A).

Courtesy of VINFAST, LLC

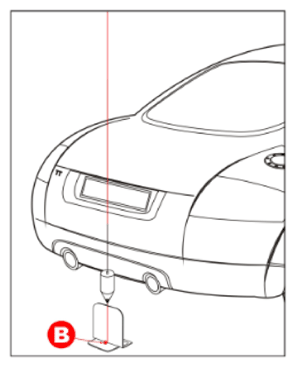

Suspend the Plumb Line (LAM09-06) against the centre of the rear vehicle "V" logo and let it naturally drop to the ground. Lightly flick the string with your finger several times to confirm the string is perpendicular to the ground. Mark the ground with a Cross Sticker to indicate the Rear Center Point of the vehicle - Point (B).
Place the Laser Reflector (LAM09-03) parallel to the vehicle and ensure the reflective stripe is aligned with Point (B).

Courtesy of VINFAST, LLC

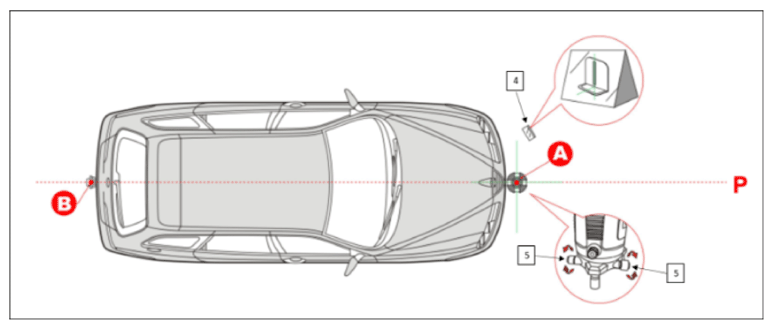

Place the Auxiliary Mirror (LAM09-04) in front of the vehicle, approximately located at (4). Angle the Auxiliary Mirror appropriately so that the Laser Reflector at the back of the vehicle can be viewed without needing to lie on the ground.
Adjust the support legs of the Five-Line Laster Instrument (LAM09-01) to ensure it is level. Turn on the laser beams of the Five-Line Laser Instrument (LAM09-01).
Observe the position of the laser beam with the auxiliary mirror LAM09-04. Rotate the fine tuning knob (5) of the 5-Line Laser Instrument (LAM09-01) at Point (A) to ensure the longitudinal laser beam aligns with the reflective stripe of the Laser Reflector (LAM09-03) at Point (B). The dotted line (P) now represents the Centre Line of the Vehicle.
Front Mid-Range Radar Calibration requires the Flat Plate Reflector to be placed 1000 mm forward of the Front Mid-Range Radar. This is difficult to measure so we will instead take a measurement from the centre line of the front axle.

Courtesy of VINFAST, LLC
Select a point approximately half a meter forward of the front bumper on Line (P) and mark it with a Cross Sticker - Point (E).

Courtesy of VINFAST, LLC

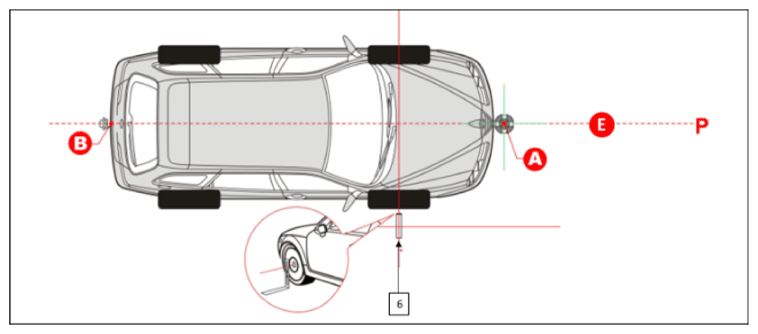

Place the L-shaped Bracket (LAM09-05) in line with the centre hub of the Left Front Wheel (6)
Use a Tape Measure to measure forwards from the L-Shape Bracket a distance of 2290 mm. Mark this point with a Cross Sticker as Point (G1).
Repeat on the Right side and mark this point with a Cross Sticker as Point (G2).

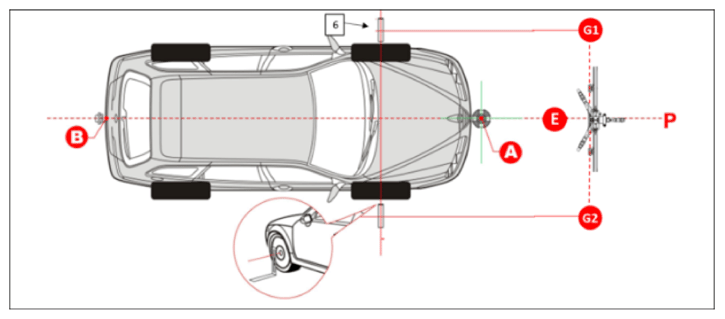

Turn on the Cross Laser Module (LAM09-02) and align the Launch Mobile Calibration Frame so that the lateral line is passing through Points (G1) and (G2). The longitudinal line should also be passing through Points (A) and (E).

Courtesy of VINFAST, LLC

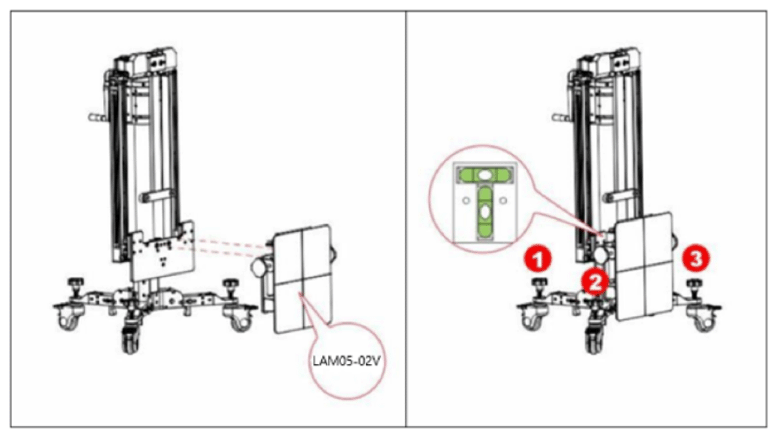

Install the Flat Plate Radar Reflector (LAM05-02V) and observe horizontal bubble level. If the bubble is not centered, adjust the bottom knobs (1, 2, 3) until the bubble is centered

Courtesy of VINFAST, LLC

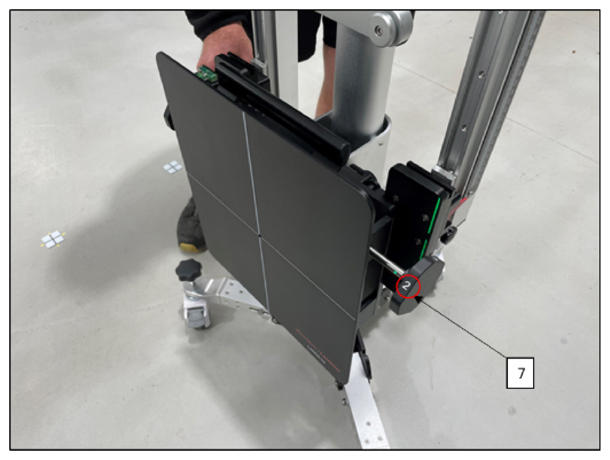

Adjust the knob (7) on the side of the Flat Plate Radar Reflector (LAM05-02V) so that it is vertical. This is setting (2) so the number (2) will be on the front top surface of the knob closest to the reflector plate.

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

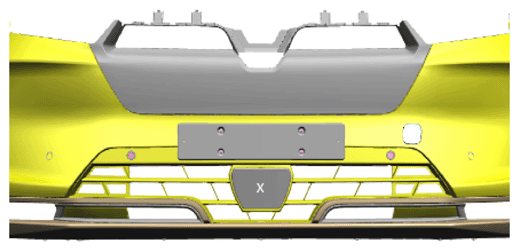

Turn on the Laser Pointer on the Mounting Plate (LAM09-10) and adjust the height of the Launch Mobile Calibration Frame using the Rotary Handle (8) until the laser is targeted directly on the center of the Radar Sensor Cover (X).
If the Front Mid Range Radar Module has been replaced, then it must be checked for correct alignment. This will require using the smaller flat plate reflector (LAM05-02) which has the laser pointer function and central hole. If the module has not been replaced, then proceed directly to Step 26.
Remove the Radar Cover. Refer to RADAR COVER REMOVAL AND INSTALLATION/REPLACEMENT
Check the position of the Laser Pointer on the Mounting Plate (LAM9-10) again and ensure that it is centered on the middle of the Mid Range Radar Module.

Courtesy of VINFAST, LLC

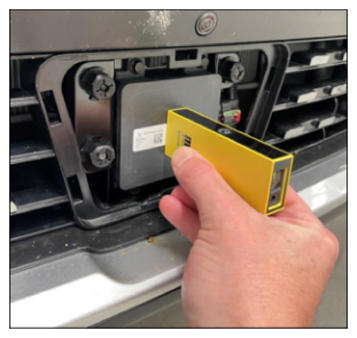

Remove the Digital Height Gauge from the Launch Mobile Calibration Frame and position it with the rear flat surface hard against the flat surface in the center of the Mid Range Radar Module.

Courtesy of VINFAST, LLC

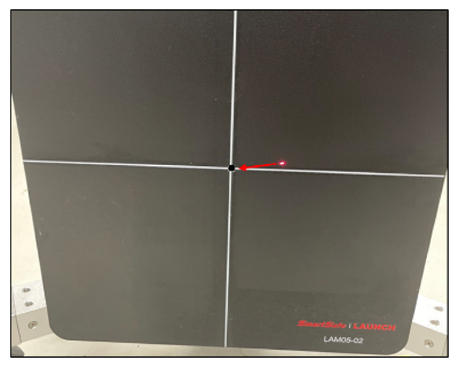

Adjust the Mid Range Radar alignment screws until the laser from the Digital Height Gauge is aligned with the centre of the Flat Plate Radar Reflector (LAM05-02). The Mid Range Radar Module can now be considered correctly aligned.
Ensure that the Launch Mobile Calibration Frame is still correctly located correctly with the longitudinal line passing through Points (A) and (E) and the lateral line passing through Points (G1) and (G2). Ensure that the larger Flat Plate Reflector is installed (LAM05-02V). If this is the case, then the Cross Laser Module (LAM09-02) and the Laser Pointer on the Mounting Plate (LAM09-10) can be turned off.
Refer to DIAGNOSTICS, PROGRAMMING & SETUP USING SCAN TOOL IN SERVICE . Follow Scan Tool instructions to trigger the ADAS module "MRR Calibration" procedure for the Front Mid-Range Radar.
If error codes are reported on Scan Tool, refer to the table below and adjust the calibration setup as required
Scan Tool will confirm when Front Mid-Range Radar Calibration is complete.

Finally complete a Diagnostic Trouble Code check to ensure the vehicle is operating correctly.

Calibration Failure Message	Recommended Action
Azimuth_OutOfRange	Check Radar Module Mounting Angle Azimuth (Left/Right)
Elevation_OutOfrange	Check Radar Module Mounting Angle Elevation (Up/Down)
RelativeMovementVehicleTarget	Ensure Radar Reflector Plate and Vehicle were not moving during calibration
DistanceToTarget_OutOfRange	Check distance to target and ensure Mid Range Radar software is updated
ObstacleInKeepOutArea	Ensure no objects are present in the area of the Radar Reflector Plate
Capability_Confidence_Level	Ensure the correct Radar Reflector Plate is being used
TargetNotFound	Ensure Radar Reflector Plate is mounted and positioned in the correct location
BadInitialization	Check DTC's and perform diagnosis. Ensure Mid Range Radar software is updated Check wiring to Mid Range Radar Module Replace Mid Range Radar Module if required
