Installation [12/2023 - ]: Procedure

  1. INSTALL NO. 1 CONVERTER CONTROL BRACKET
  2. INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY

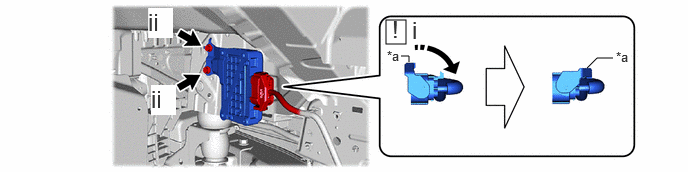

    1. GTY1187019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock Lever - -
      Pull Down the Lever - -
      1. Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock it.
      2. Install the eco run vehicle converter assembly with the 2 bolts.

        Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

  3. INSTALL FRONT FENDER LINER RH
