Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine coolant temperature sensor removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
Inspection after repair |
|
for 1Motor-HEV Model: Refer to INITIALIZATION [03/2024 - ] for Gasoline Model: Refer to INITIALIZATION [12/2023 - ] |
NOTE:
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | Refer to PRECAUTION [12/2023 - ] |
| Front camera system | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | Refer to INITIALIZATION [03/2024 - ] |
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. | - |
| Power running board system | After turning the ignition switch to ON, opening the door, and then fully deployed the power running board system, close the door and stowed the power running board system. | Refer to INITIALIZATION [12/2023 - ] |
| Power tail gate system | Reset tail gate close position. | Refer to INITIALIZATION [12/2023 - ] |

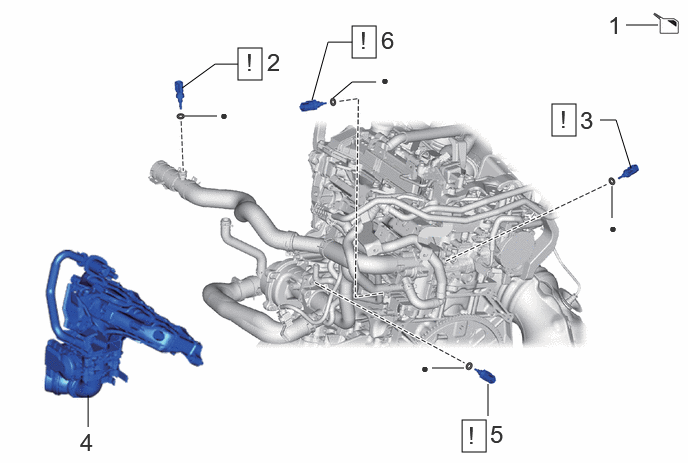

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | DRAIN ENGINE COOLANT | - | - | See step 1 | - |
| 2 | ENGINE COOLANT TEMPERATURE SENSOR (for Radiator Side) | 89422A | See step 2 | - | - |
| 3 | ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side) | 89422A | See step 3 | - | - |
| 4 | INTAKE MANIFOLD WITH THROTTLE BODY ASSEMBLY | - | - | - | - |
| 5 | E.F.I. ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side) | 89422 | See step 5 | - | - |
| 6 | E.F.I. ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side) | 89422 | See step 6 | - | - |
| • | Non-reusable part | - | - |
