Caution / Notice / Hint

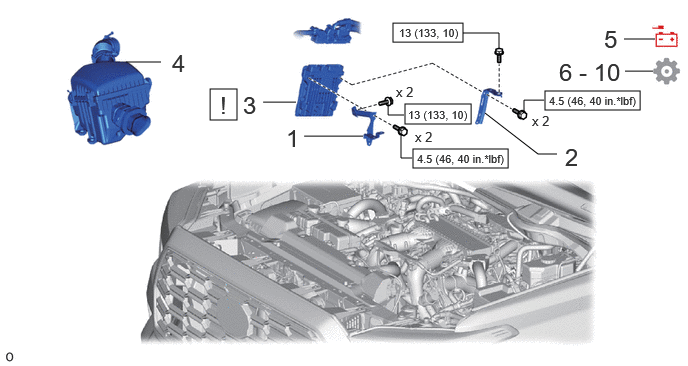

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 1 ECM BRACKET | 89667E | - | - | - |
| 2 | NO. 2 ECM BRACKET | 89668 | - | - | - |
| 3 | ECM | 89661 | See step 3 | - | - |
| 4 | AIR WITH ELEMENT CLEANER ASSEMBLY LH | 17800 | - | - | - |
| 5 | CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 6 | WRITE VIN | - | - | - | See step 6 |
| 7 | ECU CONFIGURATION | - | - | - | See step 7 |
| 8 | UPDATE ECU SECURITY KEY | - | - | - | See step 8 |
| 9 | WORK PROCEDURE AFTER PARTS INSTALLED | - | - | - | See step 9 |
| 10 | WORK PROCEDURE AFTER BATTERY RECONNECTED | - | - | - | See step 10 |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
