Installation [09/2022 - ]: Procedure

NOTE: Keep the tip of the front speed sensor and installation hole free of foreign matter. Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt. After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts. Do not twist the front speed sensor wire harness when installing it.

1. w/ AVS:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

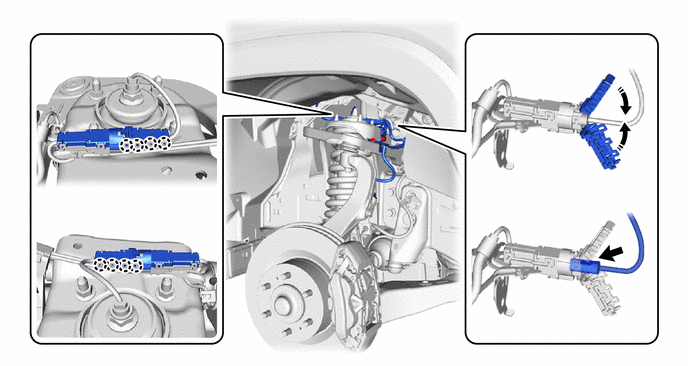

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

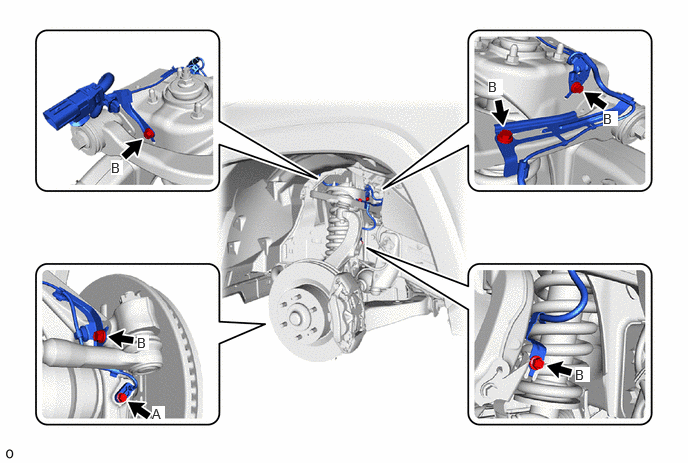

   Bolt A

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   Bolt B

   Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

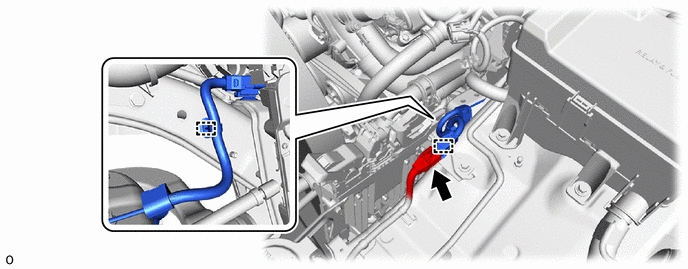

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [09/2022 - ]

Refer to INSTALLATION [09/2022 - ]

Refer to SIGNAL CHECK [09/2022 - ]
