Caution / Notice / Hint

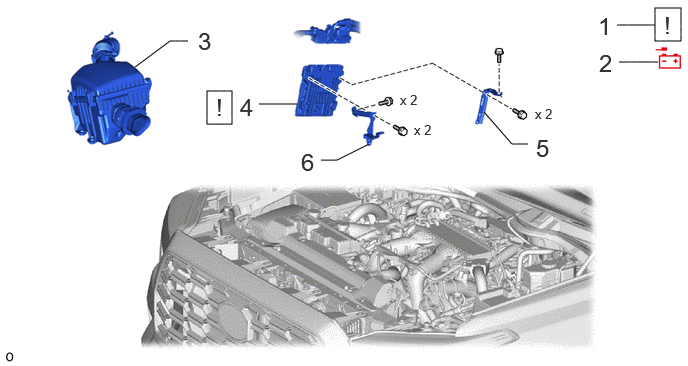

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ECM removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| ECM | Update ECU security key | Vehicle control history (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [09/2022 - ] |
| The Vehicle Identification Number (VIN) or frame number registration | DTC P063051 is output | Refer to REGISTRATION [09/2022 - ] | |
|
- | Refer to REGISTRATION [09/2022 - ] | |
| Switch Specification Information | Vehicle control history (RoB) are stored | Refer to INITIALIZATION [09/2022 - 09/2024] , or refer to INITIALIZATION [09/2024 - ] | |
| Perform code registration | Engine start | Refer to REGISTRATION [09/2022 - ] |
HINT:
When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Pre-collision system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [09/2022 - ] Lane tracing assist system
- Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Air conditioning system After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. - Power running board system After turning the ignition switch to ON, opening the door, and then fully deployed the power running board system, close the door and stoewd the power running board system. Refer to INITIALIZATION [09/2022 - ]
