Removal [02/2024 - ]: Procedure

  1. REMOVE AIR FUEL RATIO SENSOR

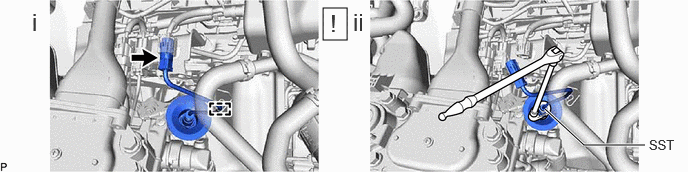

    1. GTY1221388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector and detach the wire harness from the wire clamp.
      2. Using SST, remove the air fuel ratio sensor.
        • SST: 09224-00012
        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.
