Engine Control System (A25A-FXS) - Service Information
>>
Engine Coolant Temperature Sensor
>>
Components [12/2019 - 10/2022]
Components [12/2019 - 10/2022]

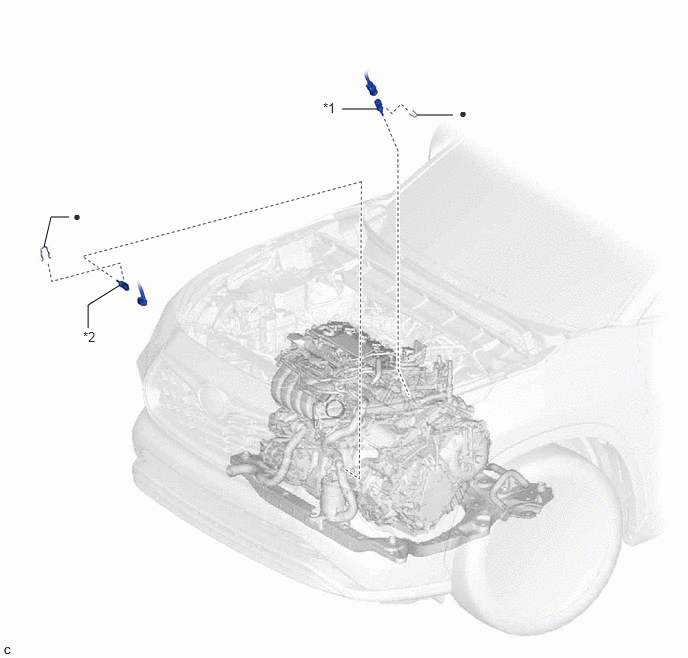

Fig 1: Engine Coolant Temperature Sensor Replacement Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
ENGINE COOLANT TEMPERATURE SENSOR
*2
NO. 2 ENGINE COOLANT TEMPERATURE SENSOR
•
Non-reusable part
-
-
