Home >> Toyota >> 2025 >> GR86 Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Service Information >> Mass Air Flow Meter >> Installation [11/2021 - ] >> Caution / Notice / Hint

Caution / Notice / Hint

COMPONENTS (INSTALLATION)

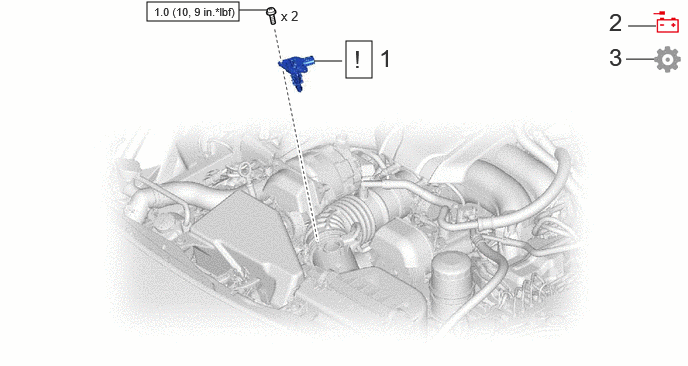

Fig 1: Mass Air Flow Meter Installation Components With Torque Specifications
GTY1046997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 MASS AIR FLOW METER 22204 See step  1 - -
2 NEGATIVE BATTERY TERMINAL - - - -
3 INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL - - - See step  3
