Components [09/2022 - ]

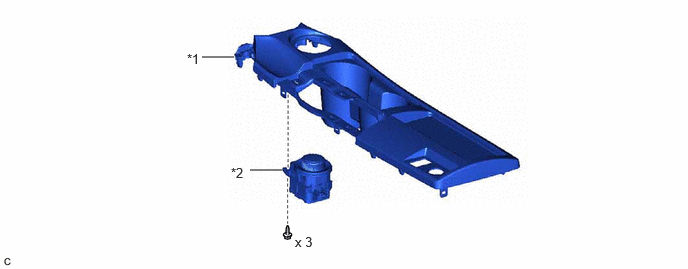

Fig 1: 4WD Control Switch Replacement Components
GTY1119072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CONSOLE CUP HOLDER BOX SUB-ASSEMBLY *2 4WD CONTROL SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)
