Removal [06/2024 - ]: Procedure

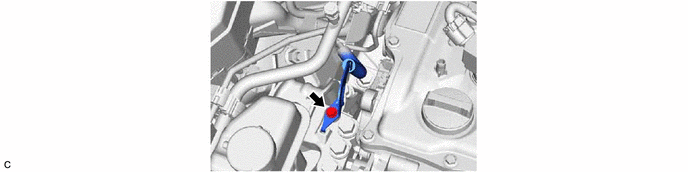

DISCONNECT NO. 2 GROUND WIRE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the cam timing oil control solenoid assembly connector.
Remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE CAM TIMING OIL CONTROL SOLENOID O-RING

HINT:
Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.

Remove the cam timing oil control solenoid O-ring from the cam timing oil control solenoid assembly.
NOTE:
- When removing the cam timing oil control solenoid O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
- If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
