Removal [06/2024 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 18
  2. REMOVE AIR FUEL RATIO SENSOR

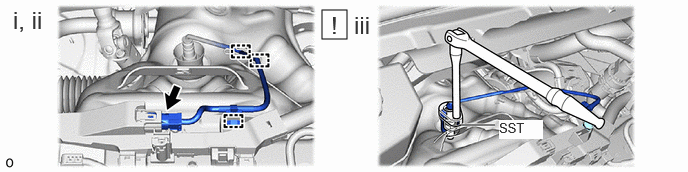

    1. GTY1153586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the 3 wire harness clamps.
      2. Disconnect the air fuel ratio sensor connector.
      3. Using SST, remove the air fuel ratio sensor from the exhaust manifold.
        • SST: 09224-00012
        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.
