Installation [06/2024 - ]: Procedure

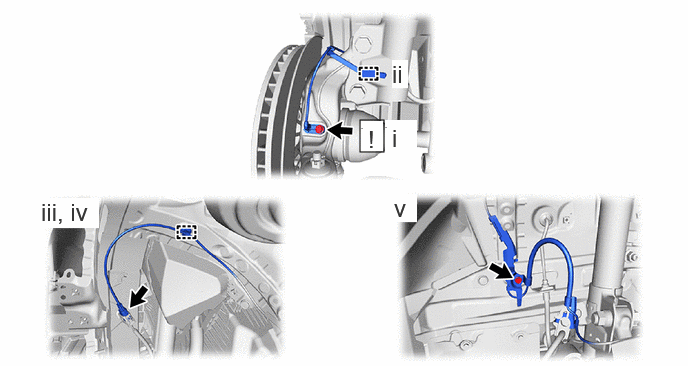

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Install the front speed sensor to the steering knuckle with the bolt.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      NOTE:

      • Keep the tip of the front speed sensor and installation hole free of foreign matter.
      • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
      • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
      • Do not twist the front speed sensor wire harness when installing it.
   2. Engage the clamp to install the sensor clamp.
   3. Engage the clamp.
      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

   4. Connect the front speed sensor connector.
      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

   5. Install the sensor clamp with the bolt.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

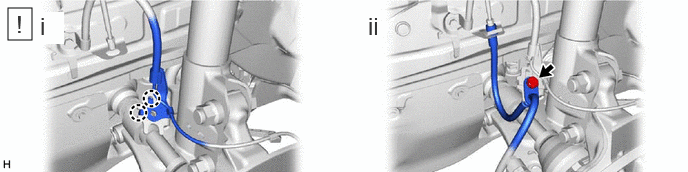

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the 2 claws to install the sensor clamp.
      NOTE:

      Do not twist the front speed sensor wire harness when installing it.

   2. Install the front flexible hose with the bolt.

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

Refer to INSTALLATION [06/2024 - ]

Refer to INSTALLATION [06/2024 - ]

Refer to SIGNAL CHECK [06/2024 - ]
