Caution / Notice / Hint

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [12/2024 - ]



COMPONENTS (REMOVAL)

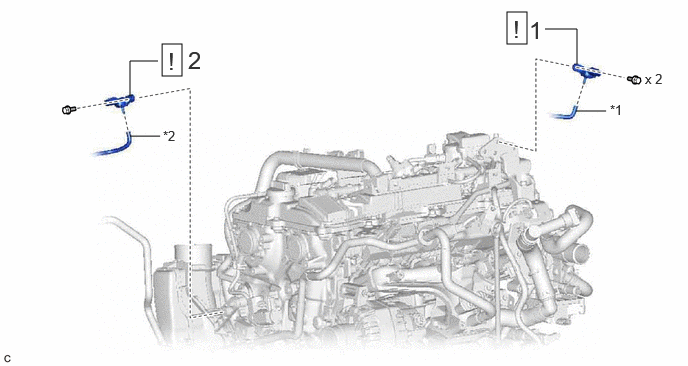

Fig 1: Vacuum Sensor Removal Components
GTY1274801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 VACUUM SENSOR ASSEMBLY 89420 See step  1 - -
2 PURGE PRESSURE SENSOR (VACUUM SENSOR ASSEMBLY) 89421 See step  2 - -
*1 NO. 2 VENTILATION PRESSURE SENSOR HOSE *2 NO. 5 VACUUM TRANSMITTING HOSE
