Removal [12/2024 - ]: Procedure

  1. REMOVE HYBRID VEHICLE TRANSMISSION ASSEMBLY WITH TRANSFER ASSEMBLY

    Refer to REMOVAL [12/2024 - ]

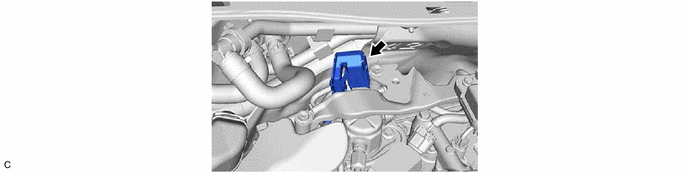

  2. DISCONNECT ENGINE WIRE
    1. GTY1275258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

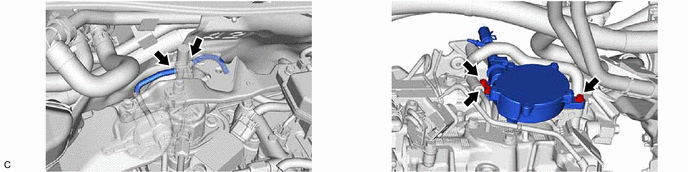

  3. REMOVE VACUUM PUMP ASSEMBLY
    1. GTY1276511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 VACUUM PUMP O-RING
    1. GTY1063891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE VACUUM PUMP CONNECTOR
    1. GTY1186215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull to unlock - -
  6. REMOVE PLUG
    1. GTY1189000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
