Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of knock control sensor | Inspection after repair |
|
for 1Motor-HEV Model: Refer to INITIALIZATION [12/2024 - ] for Gasoline Model: Refer to INITIALIZATION [12/2024 - ] |
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [12/2024 - ]
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | Refer to PRECAUTION [12/2024 - ] |
| Front camera system | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | Refer to INITIALIZATION [12/2024 - ] |
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. | - |
| Power running board system | After turning the ignition switch to ON, opening the door, and then fully deployed the power running board system, close the door and stowed the power running board system. | Refer to INITIALIZATION [12/2024 - ] |
| Power back door system*1 | Reset back door close position | Refer to INITIALIZATION [12/2024 - ] |
| Power Door Lock Control System*2 | Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | Refer to INITIALIZATION [12/2024 - ] |
*1: w/ Power Back Door System
*2: w/o Power Back Door System

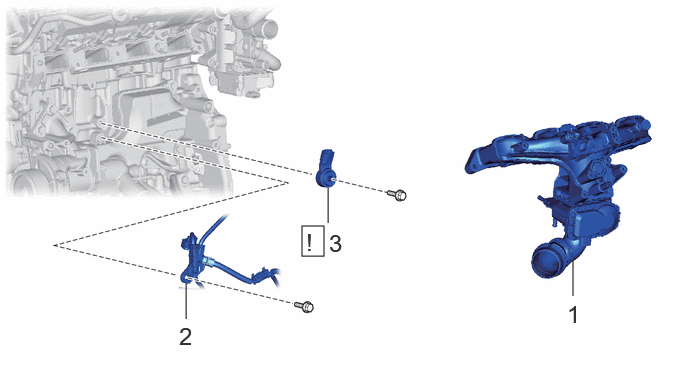

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | INTAKE MANIFOLD | 17111 | - | - | - |
| 2 | WIRE HARNESS | - | - | - | - |
| 3 | KNOCK CONTROL SENSOR | 89615 | See step 3 | - | - |
