Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ECM removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of ECM	Perform Vehicle Identification Number (VIN) registration	DTC is output	for 1Motor-HEV Model: Refer to REGISTRATION [12/2024 - ] for Gasoline Model: Refer to REGISTRATION [12/2024 - ]
	ECU configuration	-	Refer to ECU CONFIGURATION [12/2024 - ]
	Update ECU security key	Vehicle control history (RoB) are stored	Refer to UPDATE ECU SECURITY KEY [12/2024 - ]
	Heavy Knock History Save history Write history	-	for 1Motor-HEV Model: Refer to REGISTRATION [12/2024 - ] for Gasoline Model: Refer to REGISTRATION [12/2024 - ]
	Switch Specification Information	Vehicle control history (RoB) are stored	for 1Motor-HEV Model: Refer to INITIALIZATION [12/2024 - ] for Gasoline Model: Refer to INITIALIZATION [12/2024 - ]
	Code registration	Engine start Hybrid system start	for Gasoline Model: Refer to REGISTRATION [12/2024 - ] except Gasoline Model: Refer to REGISTRATION [12/2024 - ]
for L580F: Replacement of TCM	ECU configuration	-	Refer to ECU CONFIGURATION [12/2024 - ]
	Update ECU security key	Vehicle control history (RoB) are stored	Refer to UPDATE ECU SECURITY KEY [12/2024 - ]
	Possible to read compensation code K0 Compensation Code Reset A/T Code Registration K0 Compensation Code Registration ATF Thermal Degradation Estimate Reset Learning by Driving K0 Learning Promotion	During shifting and when large shock occurs at lock-up Engine overruns Large shock when starting or stopping engine The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	Refer to UTILITY [12/2024 - ]
	Impossible to read transmission compensation code K0 Compensation Code Reset A/T Code Registration (Arbitrary Code) K0 Compensation Code Registration ATF Thermal Degradation Estimate Reset Learning by Driving K0 Learning Promotion
	Impossible to read K0 compensation code K0 Compensation Code Reset A/T Code Registration K0 Compensation Code Restoration ATF Thermal Degradation Estimate Reset Learning by Driving K0 Learning Promotion
for AL80E / AL80F: Replacement of TCM	ECU configuration	-	Refer to ECU CONFIGURATION [12/2024 - ]
	Update ECU security key	Vehicle control history (RoB) are stored	Refer to UPDATE ECU SECURITY KEY [12/2024 - ]
	Possible to read transmission compensation code A/T Code Registration ATF Thermal Degradation Estimate Reset Learning by Driving	Large shift shock Engine overruns The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	Refer to UTILITY [12/2024 - ]
	Impossible to read transmission compensation code A/T Code Registration (Arbitrary Code) ATF Thermal Degradation Estimate Reset Learning by Driving		Refer to UTILITY [12/2024 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	Refer to PRECAUTION [12/2024 - ]
Front camera system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2024 - ]

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Air conditioning system	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-
Power running board system	After turning the ignition switch to ON, opening the door, and then fully deployed the power running board system, close the door and stowed the power running board system.	Refer to INITIALIZATION [12/2024 - ]
Power back door system*1	After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	Refer to INITIALIZATION [12/2024 - ]
Power Door Lock Control System*2	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [12/2024 - ]

*1: w/ Power Back Door System

*2: w/o Power Back Door System

COMPONENTS (REMOVAL)

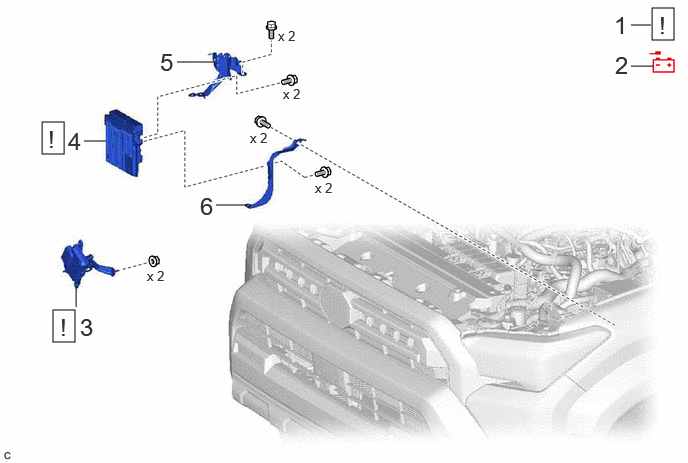

Fig 1: ECM Removal Components

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	TCM	89530C	See step 3	-	-
4	ECM	89661	See step 4	-	-
5	NO. 2 ECM BRACKET	89668	-	-	-
6	NO. 1 ECM BRACKET	89667E	-	-	-
