Removal [12/2024 - ]: Procedure

  1. REMOVE AIR FUEL RATIO SENSOR

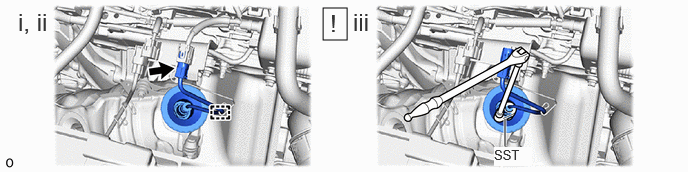

    1. GTY1273313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the wire harness clamp.
      2. Disconnect the air fuel ratio sensor connector.
      3. Using SST, remove the air fuel ratio sensor from the converter with catalyst assembly.
        • SST: 09224-00012
        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.
