Installation [12/2024 - ]: Procedure
- INSPECT SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 1 - INSTALL STEERING SENSOR

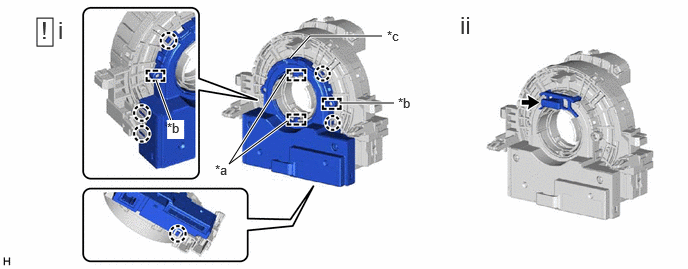

*a Guide *b Pin *c Lock Pin - - - Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.NOTE:
- Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
- Do not damage the claws or pins of the spiral cable sub-assembly or guides of the steering sensor.
- The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.
- Remove the lock pin from the steering sensor.
- Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 - INSTALL UPPER STEERING COLUMN COVER
- INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY
- ADJUST SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 - INSTALL STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 5
- CHECK STEERING WHEEL CENTER POINT
Refer to PROCEDURE - Step 7
- INSTALL HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 1 - INSTALL LOWER NO. 2 STEERING WHEEL COVER
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for Gasoline Model: Refer to INSTALLATION [12/2024 - ]
except Gasoline Model: Refer to INSTALLATION [12/2024 - ]
- UPDATE ECU SECURITY KEY
Refer to UPDATE ECU SECURITY KEY [12/2024 - ]
- INSPECT HORN BUTTON ASSEMBLY
Refer to PROCEDURE - Step 5
- PERFORM DIAGNOSTIC SYSTEM CHECK
- CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [12/2024 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)
- Set the auto tilt away function setting to the previous condition by changing the customize parameter.
Refer to CUSTOMIZE PARAMETERS [12/2024 - ]
- Set the auto tilt away function setting to the previous condition by changing the customize parameter.
- INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
