COMPONENTS (REMOVAL)

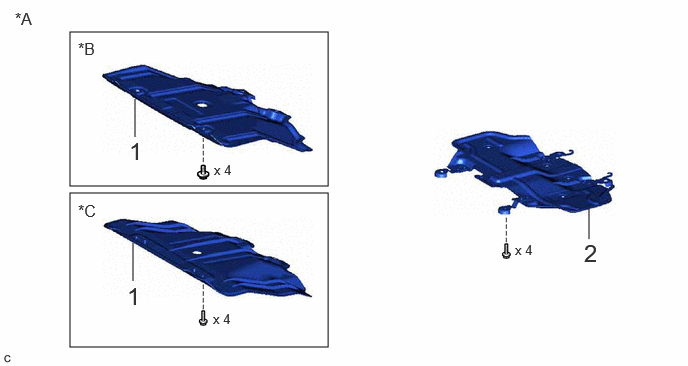

Fig 1: Engine Oil Temperature Sensor Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
2	NO. 2 ENGINE UNDER COVER ASSEMBLY	51420	-	-	-

*A	w/ Cover	*B	Type A
*C	Type B	-	-

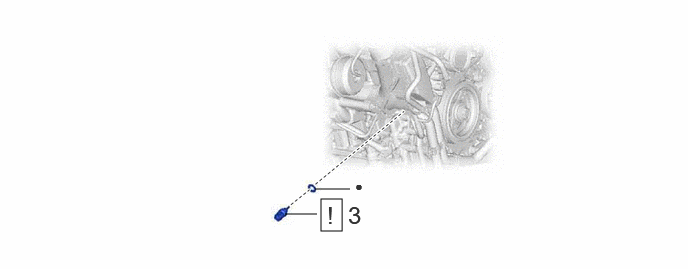

Fig 2: Engine Oil Temperature Sensor Removal Components (2 Of 2)

Procedure		Part Name Code
3	ENGINE OIL TEMPERATURE SENSOR	89429F	See step 3	-	-

•

Non-reusable part
